78RB04T - Grayhill

Description: 4 Way Through Hole Slide Switch SPST

Download 78RB04T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

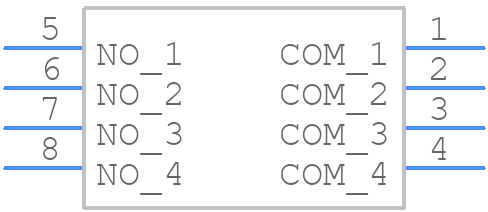

78RB04T - Grayhill - PCB symbol
click to zoom
PCB Footprints
78RB04T - Grayhill PCB footprint - Other - Other - 78RB04T-1
click to zoom
3D Models
78RB04T - Grayhill - 3D model - Other - 78RB04T-1
click to zoom

78RB04T Details

  • Manufacturer Part Number:

    78RB04T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Grayhill Inc

  • YTEOL:

    6.6

  • Body Breadth:

    9.65 mm

  • Body Height:

    6.73 mm

  • Body Length or Diameter:

    12.2 mm

  • Contact Current(DC)-Max:

    0.15 A

  • Contact (DC) Max Rating R Load:

    .15A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Electrical Life:

    2000 Cycle(s)

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Switch Sections:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Hole Count:

    8

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPST

  • Switch Type:

    SLIDE DIP SWITCH

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Termination Type:

    SOLDER

78RB04T Frequently Asked Questions (FAQs)

  • The recommended torque for assembling the 78RB04T switch is 2-4 in-lbs (0.2-0.4 Nm) for the nut and 1-2 in-lbs (0.1-0.2 Nm) for the set screw.
  • Yes, the 78RB04T switch is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, which simulates vibrations up to 10 G peak acceleration.
  • Yes, the 78RB04T switch has a sealed construction that meets IP67 standards, providing protection against dust and water ingress.
  • The 78RB04T switch operates within a temperature range of -20°C to 85°C (-4°F to 185°F).
  • Yes, Grayhill Inc offers customization options for the 78RB04T switch, including custom shaft lengths and terminations. Contact their sales team for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

78RB04T Overview

Use the download button to access the 78RB04T schematic symbol, PCB footprint, and 3D model.
