794073-1 - TE Connectivity

Description: Connector Header Through Hole 8 position 0.163" (4.14mm)

Download 794073-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
794073-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

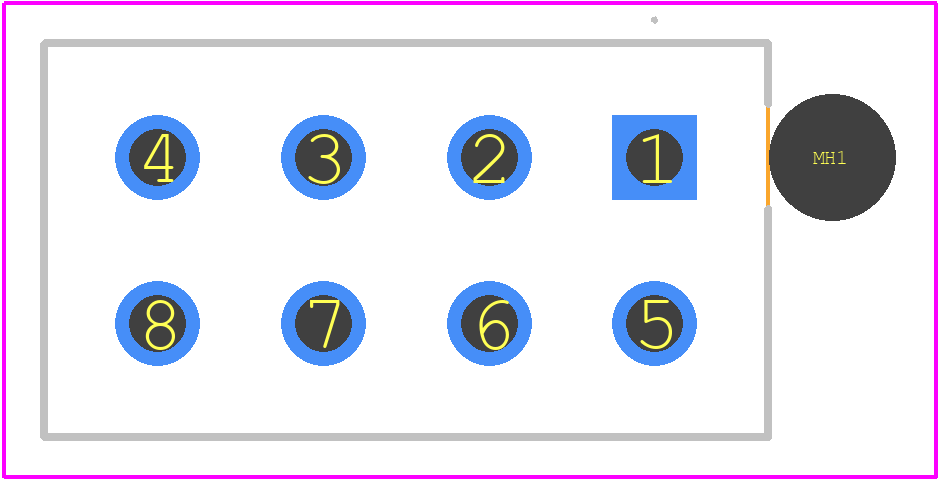

794073-1 - TE Connectivity PCB footprint - Other - Other - 794073-1-2
click to zoom
3D Models
794073-1 - TE Connectivity - 3D model - Other - 794073-1-2
click to zoom

794073-1 Details

  • Manufacturer Part Number:

    794073-1

  • Brand Name:

    AMP

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.468 inch

  • Body Depth:

    0.387 inch

  • Body Length:

    0.916 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    WHITE

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e0

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    9.5A

  • Mating Contact Row Spacing:

    0.163 inch

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    250u inch

  • Rated Current (Signal):

    9.5 A

  • Rated Voltage:

    600 V

  • Reference Standard:

    CSA, UL

  • Terminal Pitch:

    4.14 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0
