794584-1 - TE Connectivity

Description: Configuration Features: PCB Mount Orientation Vertical | Number of Positions 5 | Number of Rows 1 | Number of Power Positions 5 | Contact Features: Contact Layout Inline | Contact Type Socket | Contact Mating Area Plating Material Thickness 3.81 – 5.08 MICM | PCB Contact Termination Area Plating Material Pre-Tin | Contact Mating Area Plating Material Tin | Multiple Contact Types Without | Contact Current Rating (Max) 12 AMP | Contact Retention Within Housing Without | Contact Mating Area Plating Material

Download 794584-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
794584-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

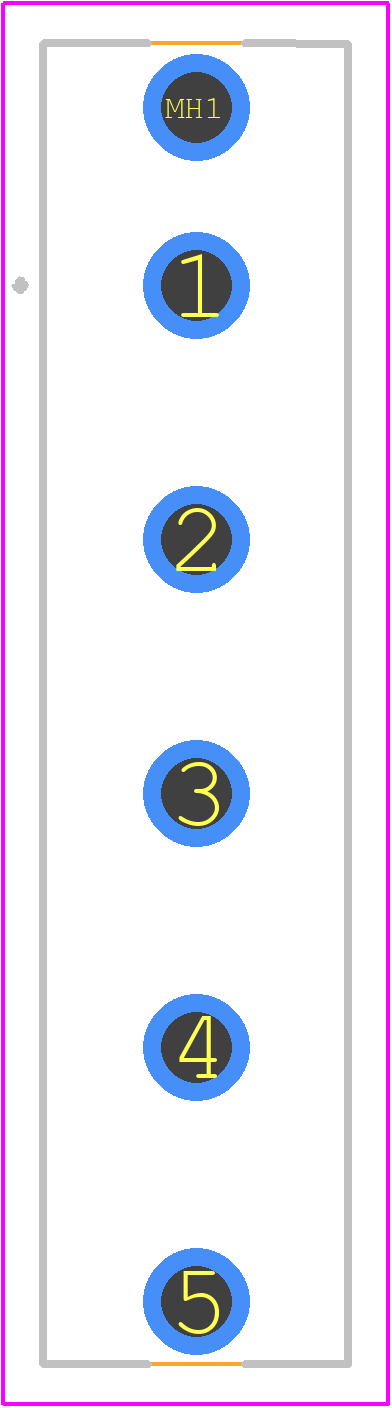

794584-1 - TE Connectivity PCB footprint - Other - Other - 794584-1-3
click to zoom
3D Models
794584-1 - TE Connectivity - 3D model - Other - 794584-1-3
click to zoom

794584-1 Details

  • Manufacturer Part Number:

    794584-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.87

  • Additional Feature:

    MATE-N-LOK, POLARIZED

  • Body Depth:

    0.55 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    12A

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    200u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    12 A

  • Reference Standard:

    CSA, UL, V

  • Terminal Pitch:

    6.35 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

  • UL Flammability Code:

    94V-0

794584-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 794584-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 794584-1 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to ensure the connector remains watertight in outdoor environments.
  • While the datasheet specifies 24-18 AWG wire sizes, it's possible to use this connector with other wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure the connector can accommodate the desired wire size and meet the required electrical and mechanical performance.
  • The 794584-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its electrical and mechanical performance.
