796690-6 - TE Connectivity

Description: 6 Position PCB Terminal Block, Header, Wire-to-Board, 5 mm [.197 in] Centerline, 1 Row, 35° Wire Entry Angle, 30 – 12 AWG Wire Size

Download 796690-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
796690-6 - TE Connectivity - PCB symbol
click to zoom

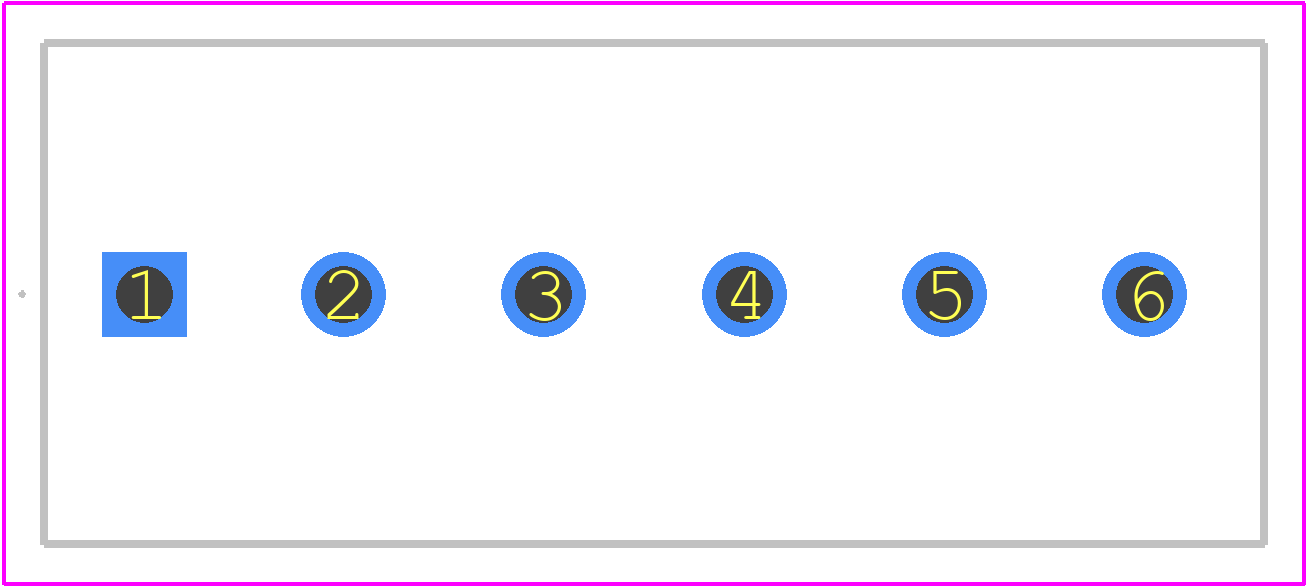

PCB Footprints
796690-6 - TE Connectivity PCB footprint - Other - Other - 796690-6-1
click to zoom
3D Models
796690-6 - TE Connectivity - 3D model - Other - 796690-6-1
click to zoom

796690-6 Details

  • Manufacturer Part Number:

    796690-6

  • Brand Name:

    Buchanan

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Additional Feature:

    PA66, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    17.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG

796690-6 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 796690-6 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 796690-6 connector has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The 796690-6 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • Yes, the 796690-6 connector can accommodate wire sizes from 20 AWG to 28 AWG, but the recommended wire size is 24 AWG for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

796690-6 Overview

Use the download button to access the 796690-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 79669, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
