796692-6 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Vertical | Configuration Features: Number of Positions 6 | Number of Rows 2 | Stacked Levels Level 1/Level 2 | Wire Entry Angle 90° | Wire Entry Location Side | Stacking Configuration Side Stackable | Contact Features: Contact Base Material Brass | Contact Mating Area Plating Material Tin | Contact Current Rating (Max) 17.5 AMP | Dimensions: Wire Size .05 – 3 MMSQ | Wire Size 30 – 12 AWG | Electrical Characteristics: Operating Voltage 300

Download 796692-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
796692-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

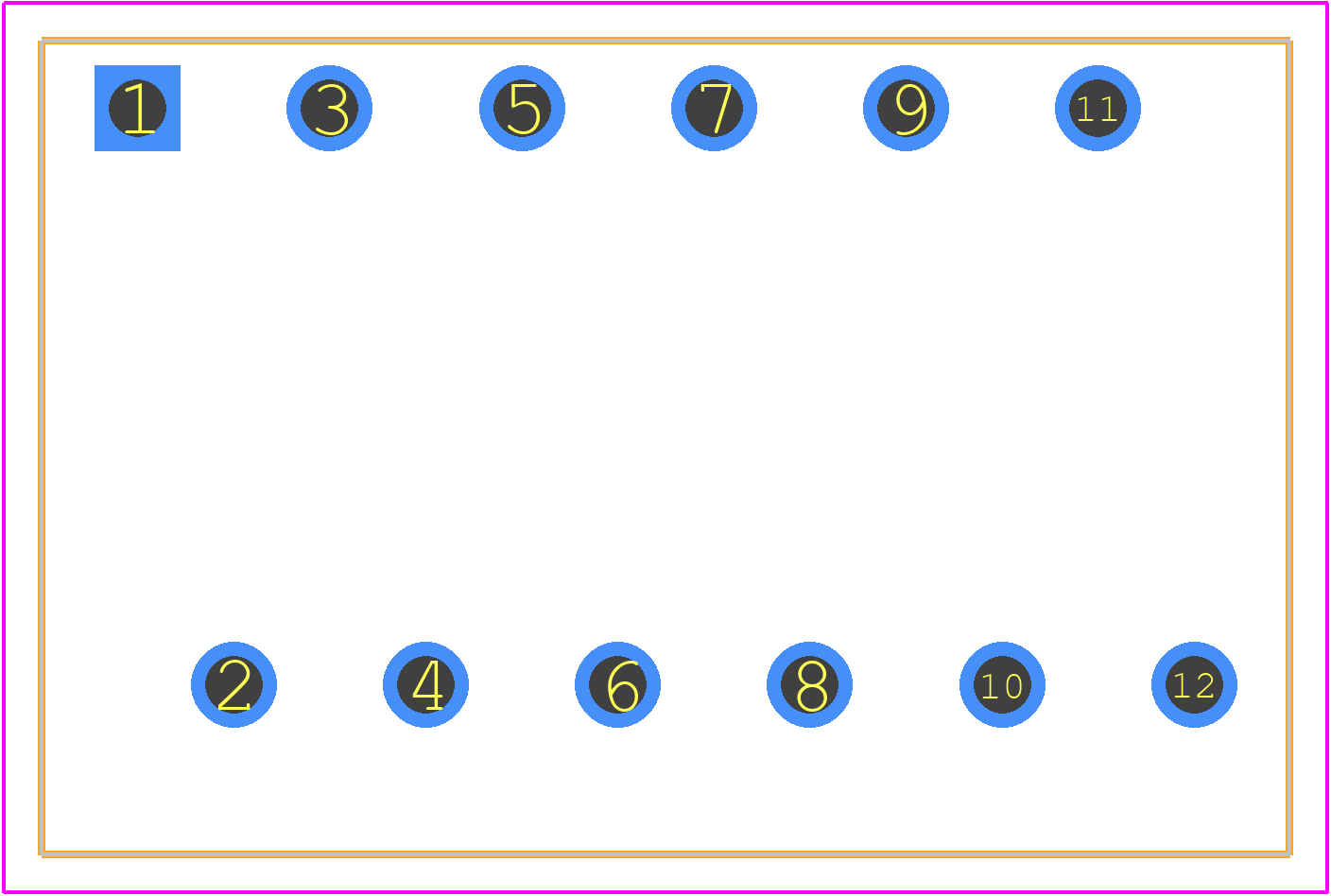

796692-6 - TE Connectivity PCB footprint - Other - Other - 796692-6-2
click to zoom
3D Models
796692-6 - TE Connectivity - 3D model - Other - 796692-6-2
click to zoom

796692-6 Details

  • Manufacturer Part Number:

    796692-6

  • Brand Name:

    Buchanan

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.87

  • Additional Feature:

    BUCHANAN, POLYAMIDE66, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    6

  • Rated Current:

    17.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG

796692-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 796692-6 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The operating temperature range for the 796692-6 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 796692-6 connector is designed to operate in harsh environments. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes.
  • The mating cycle life of the 796692-6 connector is 500 cycles. This means the connector can withstand 500 mating and unmating cycles without compromising its performance or reliability.
