796866-8 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Right Angle | Configuration Features: Number of Rows 1 | Number of Positions 8 | Contact Features: Contact Current Rating (Max) 15 AMP | Contact Mating Area Plating Material Tin | Contact Base Material Copper Alloy | Dimensions: Wire Size 30 – 12 AWG | Wire Size .05 – 3 MMSQ | Electrical Characteristics: Operating Voltage 300 VAC | Housing Features: Centerline (Pitch) 5.08 MM | Housing Material PA 66 | Centerline (Pitch) .2 INCH | Mechanic

Download 796866-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
796866-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

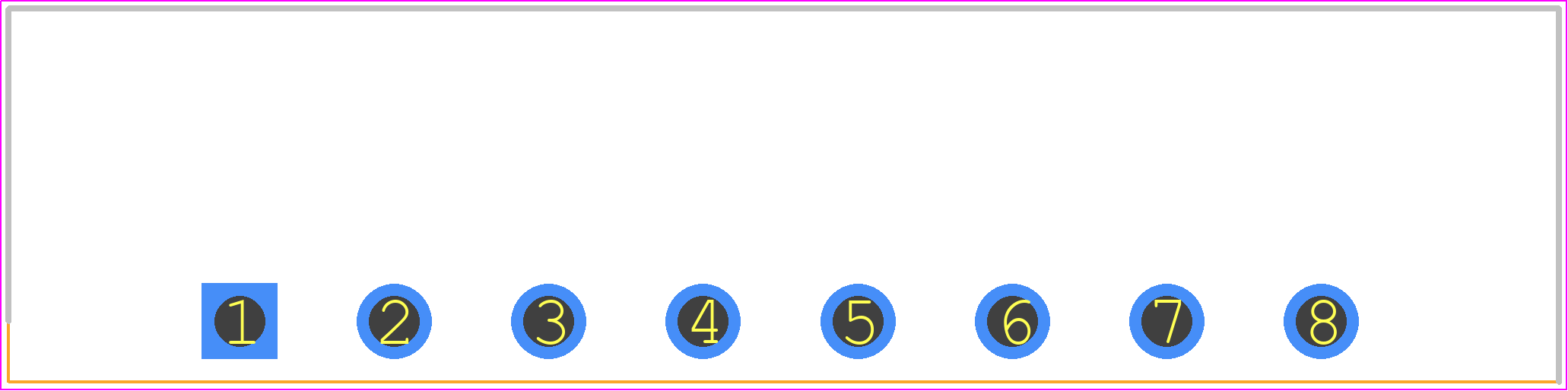

796866-8 - TE Connectivity PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 796866-8
click to zoom
3D Models
796866-8 - TE Connectivity - 3D model - Header, Shrouded - Right Angle PTH Box - 796866-8
click to zoom

796866-8 Details

  • Manufacturer Part Number:

    796866-8

  • Brand Name:

    Buchanan

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    PA66, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

796866-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 796866-8 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • The 796866-8 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
  • The 796866-8 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 796866-8 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. It's essential to verify compatibility before using the connector with other products to ensure reliable connections and performance.
