796867-6 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Primary Product Color Green | Configuration Features: Number of Rows 1 | Number of Positions 6 | Contact Features: Contact Base Material Copper Alloy | Contact Current Rating (Max) 15 AMP | Contact Mating Area Plating Material Tin | Dimensions: Wire Size 30 – 12 AWG | Wire Size .05 – 3 MMSQ | Electrical Characteristics: Operating Voltage 300 VAC | Housing Features: Centerline (Pitch) 5.08 MM | Housing Material PA 66 | Centerline (Pitch) .2 INCH | Mechanical

Download 796867-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
796867-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

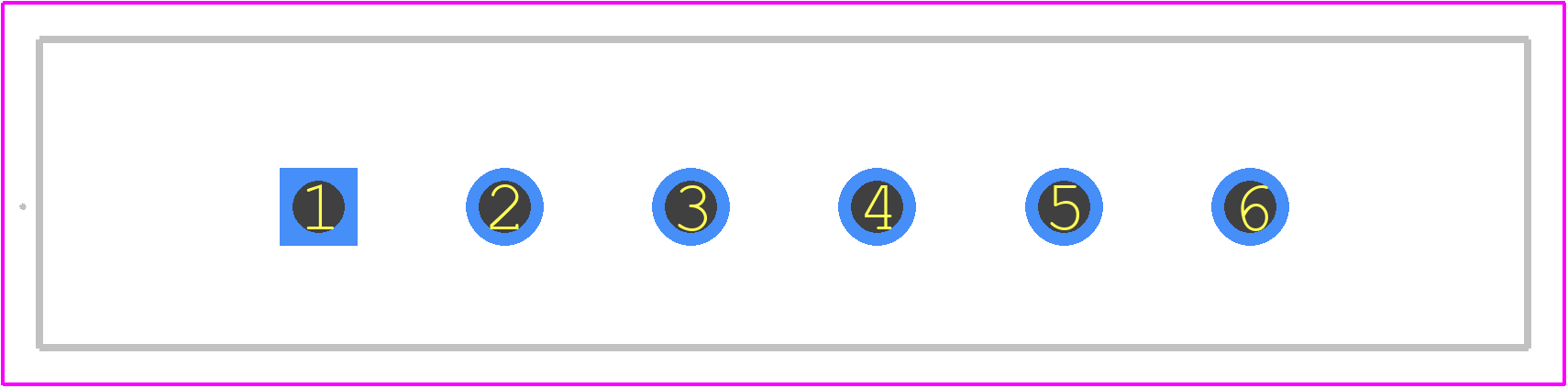

796867-6 - TE Connectivity PCB footprint - Other - Other - 796867-6-1
click to zoom
3D Models
796867-6 - TE Connectivity - 3D model - Other - 796867-6-1
click to zoom

796867-6 Details

  • Manufacturer Part Number:

    796867-6

  • Brand Name:

    Buchanan

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.75

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

796867-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 796867-6 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • The 796867-6 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating. Additionally, the connector's materials are resistant to UV and salt spray, making it suitable for outdoor use.
  • The 796867-6 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
  • While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes between 20 AWG and 28 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to maintain reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

796867-6 Overview

Use the download button to access the 796867-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 79686, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
