Part Image

796985-8 - TE Connectivity

Description: 4 Position Barrier Strip, Dual Barrier, Printed Circuit Pin Bottom Termination, Wire-to-Board, 9.53 mm [.375 in] Centerline, 1 Row, 300 V / 600 V

Download 796985-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
796985-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

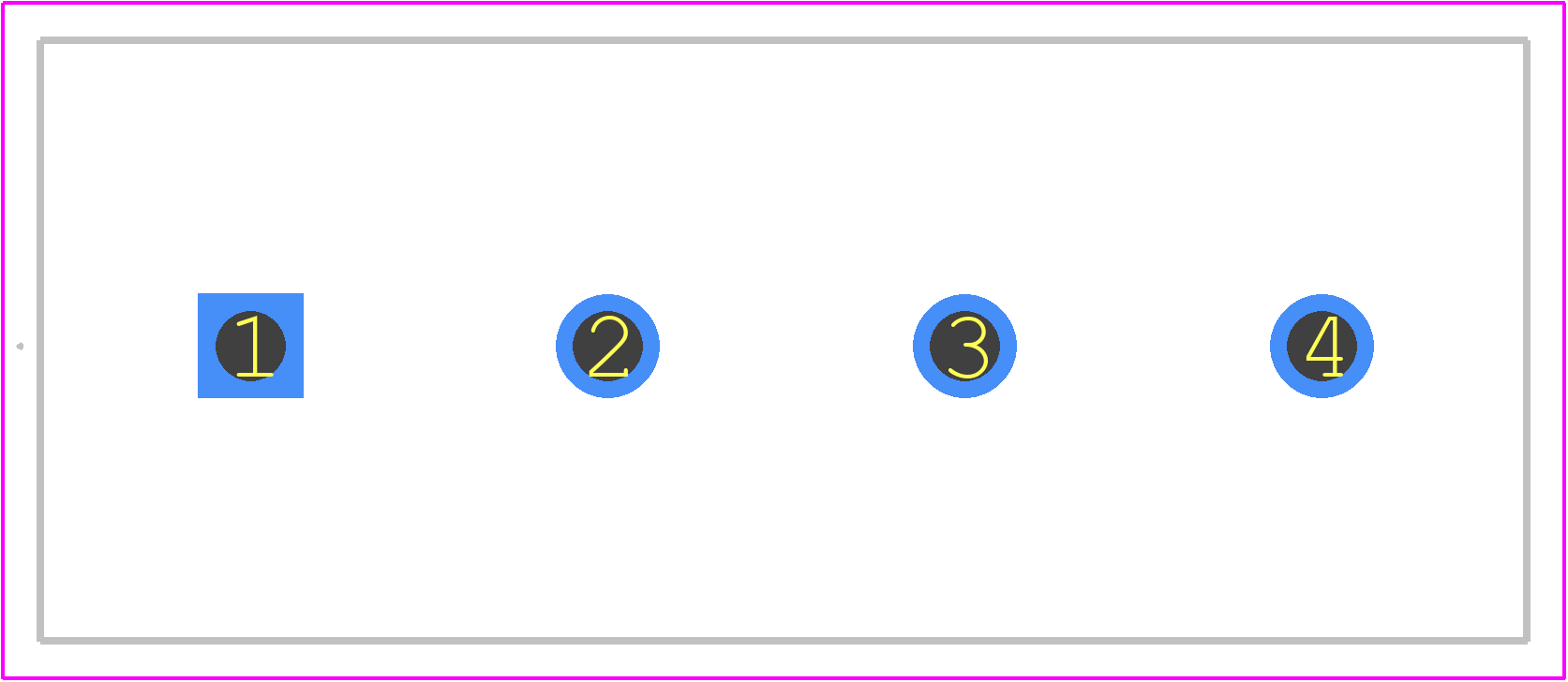

796985-8 - TE Connectivity PCB footprint - Other - Other - 796985-8-1
click to zoom
3D Models
796985-8 - TE Connectivity - 3D model - Other - 796985-8-1
click to zoom

796985-8 Details

  • Manufacturer Part Number:

    796985-8

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    STANDARD: UL 94V-0, THERMOPLASTIC

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    20 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG

796985-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 796985-8 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 796985-8 connector has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The operating temperature range for the 796985-8 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 796985-8 connector can accommodate wire sizes ranging from 16 AWG to 20 AWG, but the recommended wire size is 18 AWG.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

796985-8 Overview

Use the download button to access the 796985-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 79698, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
