- Part Number 79A10T
- Manufacturer Grayhill
- Pin Count 20
- Part Category Switch
- Package Category Other

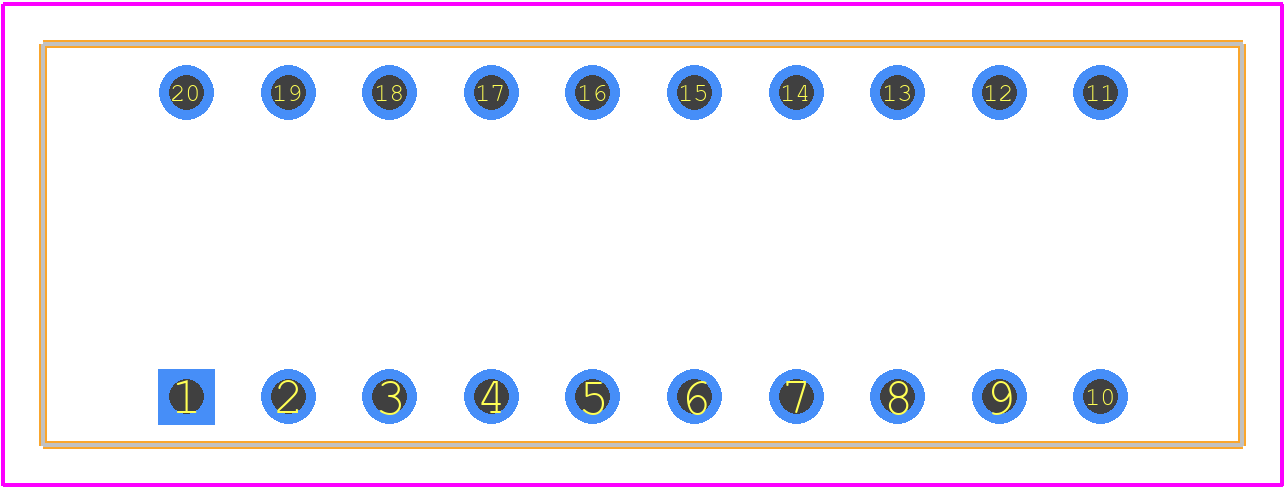

- Footprint Name Other - 79A10T-1
- Released Date Feb 24, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
79A10T Details
-
Manufacturer Part Number:
79A10T
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.90.65
-
Factory Lead Time:
18 Weeks
-
Manufacturer:
Grayhill Inc
-
YTEOL:
6.5
-
Body Breadth:
10.03 mm
79A10T Frequently Asked Questions (FAQs)
-
The recommended torque for the 79A10T rotary switch is 0.5-1.5 in-lbs (0.056-0.169 Nm).
-
Yes, the 79A10T is designed to withstand high-vibration environments. However, it's recommended to consult with Grayhill's application engineers to ensure the switch meets the specific vibration requirements of your application.
-
The operating temperature range for the 79A10T is -20°C to 85°C (-4°F to 185°F).
-
The 79A10T is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's recommended to consult with Grayhill's application engineers to ensure the switch meets the specific environmental requirements of your application.
-
Yes, Grayhill offers customization options for the 79A10T, including custom legends, shaft lengths, and more. Contact Grayhill's sales team to discuss your specific requirements.
Trust Checks
Expert Contribution
System Verified
Community Approved
79A10T Overview

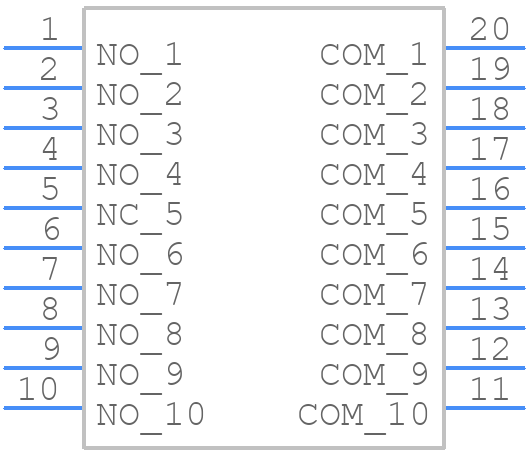

Use the download button to access the 79A10T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 79A10,
or try a keyword search, such as DIP Switches
