7B-18.432MEEQ-T footprint, schematic symbol and 3D model by TXC CORPORATION

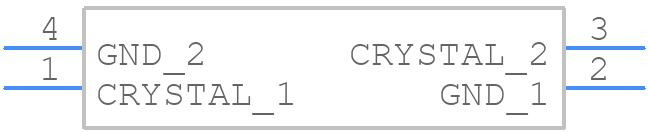

Symbol

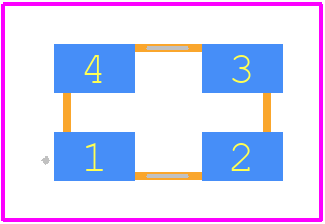

PCB Footprints

3D Models

7B-18.432MEEQ-T Details

The recommended operating temperature range for the 7B-18.432MEEQ-T is -40°C to +85°C, as specified in the datasheet.
To ensure the crystal oscillator starts up correctly, make sure to follow the recommended power-up sequence, provide a stable power supply, and ensure the oscillator is properly connected to the circuit.
The maximum allowable frequency deviation for the 7B-18.432MEEQ-T is ±100 ppm over the operating temperature range, as specified in the datasheet.
The 7B-18.432MEEQ-T is designed to operate in environments with moderate vibration. However, if you plan to use it in a high-vibration environment, you should consult with TXC Corporation or perform additional testing to ensure the oscillator's reliability.
The recommended storage temperature range for the 7B-18.432MEEQ-T is -40°C to +125°C, as specified in the datasheet.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 7B-18.432MEEQ-T schematic symbol, PCB footprint, and 3D model.
