7B-20.000MAAJ-T - TXC CORPORATION

Description: Crystals 20.000MHz 30ppm -20 +70C 18pF

Download 7B-20.000MAAJ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

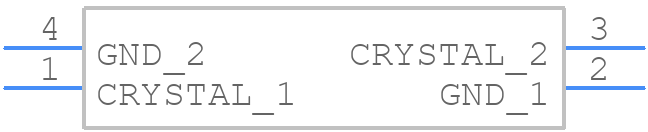

7B-20.000MAAJ-T - TXC CORPORATION - PCB symbol
click to zoom
PCB Footprints

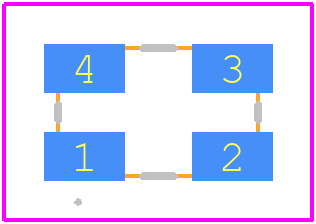

7B-20.000MAAJ-T - TXC CORPORATION PCB footprint - Other - Other - 5 x 3.2 mm SMD
click to zoom
3D Models
7B-20.000MAAJ-T - TXC CORPORATION - 3D model - Other - 5 x 3.2 mm SMD
click to zoom

7B-20.000MAAJ-T Details

  • Manufacturer Part Number:

    7B-20.000MAAJ-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMD, 4 PIN

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.60.00.50

  • Manufacturer:

    TXC Corporation

  • YTEOL:

    0

  • Aging:

    3 PPM/YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    1 µW

  • Frequency Stability:

    0.003%

  • Frequency Tolerance (MHz):

    30

  • Load Capacitance:

    18 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    20 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR

  • Physical Dimension:

    5.0mm x 3.2mm x 0.9mm

  • Series Resistance:

    40 Ω

  • Surface Mount:

    YES

7B-20.000MAAJ-T Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 7B-20.000MAAJ-T is -40°C to +85°C.
  • To ensure stability and accuracy in high-vibration environments, it's recommended to use a vibration-resistant mounting method, such as a rigidly mounted PCB or a vibration-dampening material. Additionally, consider using a oscillator with a higher frequency stability grade, such as ±10 ppm or better.
  • The maximum allowable voltage tolerance for the 7B-20.000MAAJ-T is ±10% of the nominal voltage rating (1.8V to 3.3V).
  • While the 7B-20.000MAAJ-T is specified for a 20 MHz frequency, TXC Corporation offers a range of frequencies for this oscillator family. Contact TXC Corporation or a authorized distributor to inquire about custom frequency options.
  • The typical start-up time for the 7B-20.000MAAJ-T is 10 ms (max). This is the time it takes for the oscillator to stabilize and reach its specified frequency after power-on.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7B-20.000MAAJ-T Overview

Use the download button to access the 7B-20.000MAAJ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7B-20, or try a keyword search, such as Quartz Crystals
