7M-10.000MAAJ-T footprint, schematic symbol and 3D model by TXC CORPORATION

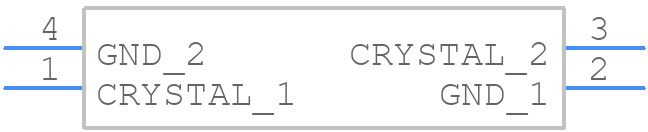

Symbol

PCB Footprints

3D Models

7M-10.000MAAJ-T Details

The recommended operating temperature range for the 7M-10.000MAAJ-T is -40°C to +85°C.
To ensure stability and accuracy in high-vibration environments, it's recommended to use a vibration-resistant mounting method, such as a rigidly mounted oscillator or a vibration-dampening material. Additionally, consider using a oscillator with a higher frequency stability grade, such as ±10 ppm or better.
The maximum allowable voltage tolerance for the 7M-10.000MAAJ-T is ±5% of the nominal voltage rating.
While the 7M-10.000MAAJ-T is designed to operate in a variety of environments, it's recommended to use it in a humidity-controlled environment with a relative humidity of 60% or less to ensure optimal performance and reliability.
The typical start-up time for the 7M-10.000MAAJ-T is around 2-5 ms, but this can vary depending on the specific application and operating conditions.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 7M-10.000MAAJ-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 7M-10, or try a keyword search, such as Quartz Crystals
