7M-16.000MAAJ-T - TXC CORPORATION

Description: Crystals 16.000MHz 30ppm -20 +70C 18pF

Download 7M-16.000MAAJ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

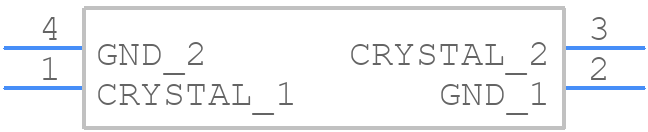

7M-16.000MAAJ-T - TXC CORPORATION - PCB symbol
click to zoom
PCB Footprints
7M-16.000MAAJ-T - TXC CORPORATION PCB footprint - Other - Other - 7M-16.000MAAJ-T-2
click to zoom
3D Models
7M-16.000MAAJ-T - TXC CORPORATION - 3D model - Other - 7M-16.000MAAJ-T-2
click to zoom

7M-16.000MAAJ-T Details

  • Manufacturer Part Number:

    7M-16.000MAAJ-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.60.00.50

  • Manufacturer:

    TXC Corporation

  • YTEOL:

    7.2

  • Aging:

    3 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    1 µW

  • Frequency Stability:

    0.003%

  • Frequency Tolerance (MHz):

    30

  • JESD-609 Code:

    e4

  • Load Capacitance:

    18 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    16 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TR, 7 INCH

  • Physical Dimension:

    3.2mm x 2.5mm x 0.7mm

  • Series Resistance:

    60 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL
