The recommended operating temperature range for the 7M-25.000MAAE-T is -40°C to +85°C.
To ensure the oscillator starts up correctly, make sure to decouple the power supply with a 10uF capacitor and use a 1kΩ resistor in series with the output to prevent overdrive.
The maximum frequency deviation allowed for the 7M-25.000MAAE-T is ±50 ppm over the entire operating temperature range.
Yes, the 7M-25.000MAAE-T is designed to operate in high-vibration environments and can withstand vibrations up to 10G.
The typical start-up time for the 7M-25.000MAAE-T is 10ms.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7M-25.000MAAE-T Overview

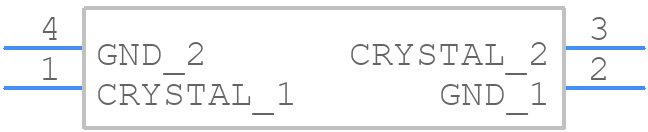

Use the download button to access the 7M-25.000MAAE-T schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 7M-25,
or try a keyword search, such as Quartz Crystals
