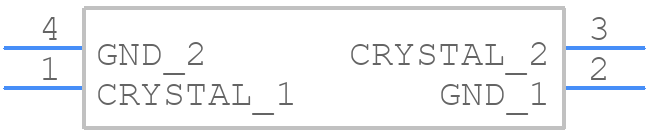

7M-27.120MAAJ-T footprint, schematic symbol and 3D model by TXC CORPORATION

Symbol

PCB Footprints

3D Models

7M-27.120MAAJ-T Details

The recommended operating temperature range for the 7M-27.120MAAJ-T is -40°C to +85°C.
To ensure stability and accuracy in high-vibration environments, it's recommended to use a vibration-resistant mounting method, such as a rigidly mounted PCB or a vibration-dampening material, and to follow proper PCB design and layout guidelines.
The maximum allowable voltage tolerance for the 7M-27.120MAAJ-T is ±10% of the rated voltage (1.8V to 3.3V).
No, the 7M-27.120MAAJ-T is a fixed-frequency oscillator and cannot be adjusted to operate at a different frequency. If a different frequency is required, a different part number or oscillator type may be needed.
The typical start-up time for the 7M-27.120MAAJ-T is around 10ms, but this can vary depending on the specific application and operating conditions.
