7N-26.000MBP-T footprint, schematic symbol and 3D model by TXC CORPORATION

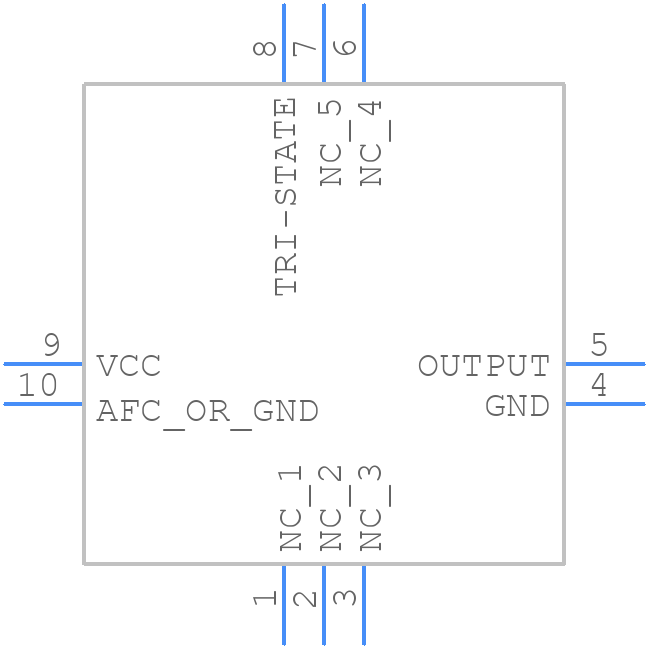

Symbol

PCB Footprints

3D Models

7N-26.000MBP-T Details

TXC recommends a symmetrical PCB layout with a ground plane underneath the oscillator to minimize noise and radiation. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper startup, TXC recommends applying power to the oscillator with a slow rise time (typically 1-10 ms) and ensuring that the power supply voltage is within the recommended range.
The 7N-26.000MBP-T oscillator has a maximum allowable frequency deviation of ±100 ppm over the operating temperature range of -40°C to 85°C.
Yes, the 7N-26.000MBP-T oscillator is designed to operate in high-vibration environments. However, it's essential to ensure that the oscillator is properly mounted and secured to the PCB to prevent mechanical stress.
TXC recommends storing the oscillator in a dry, cool place with a temperature range of -40°C to 40°C and a relative humidity of 60% or less.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 7N-26.000MBP-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 7N-26, or try a keyword search, such as TCXO
