7P-25.000MBP-T - TXC CORPORATION

Description: Standard Clock Oscillators 25MHz 3.3Volt .28ppm -40C +85C

Download 7P-25.000MBP-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

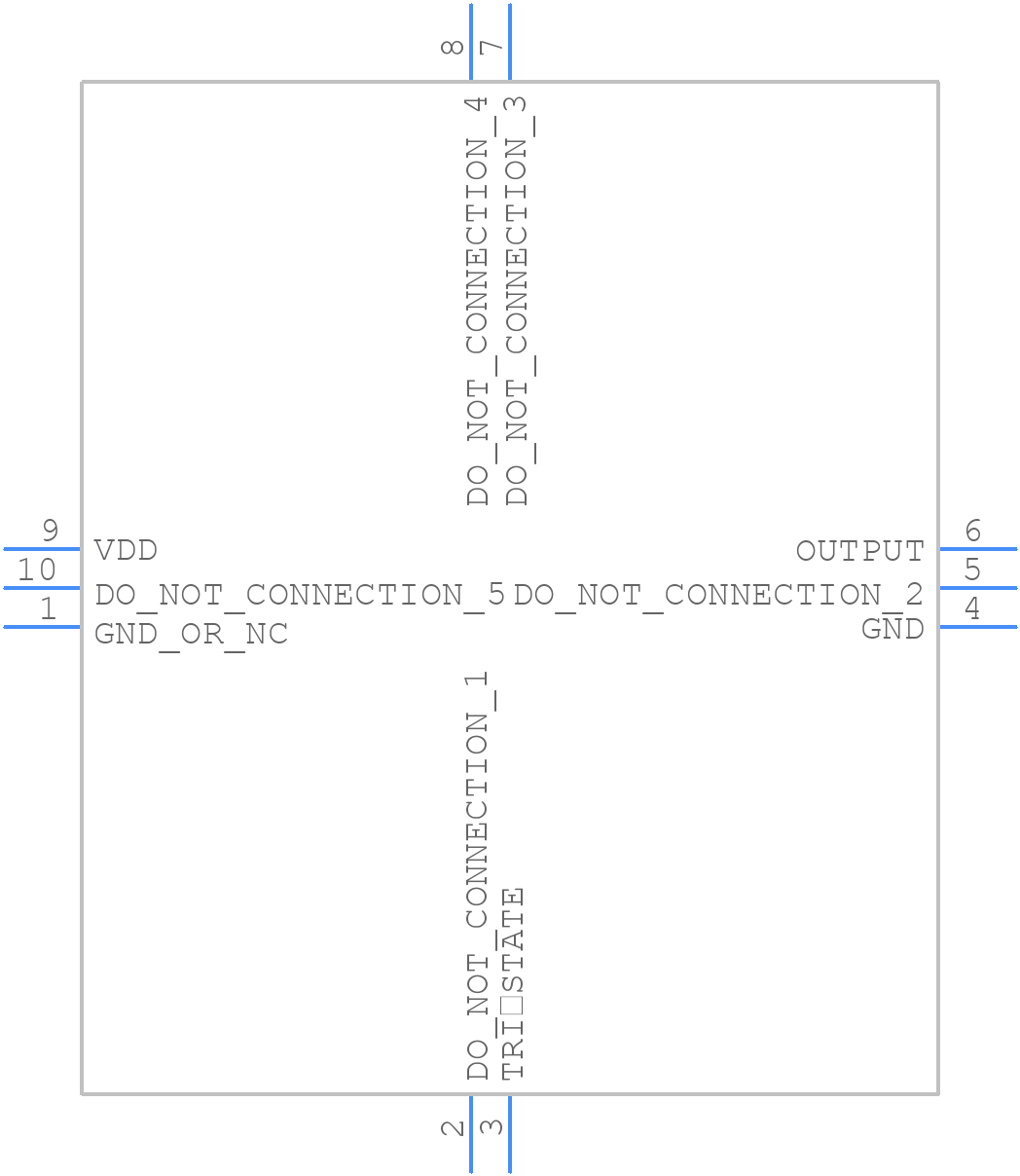

7P-25.000MBP-T - TXC CORPORATION - PCB symbol
click to zoom
PCB Footprints
7P-25.000MBP-T - TXC CORPORATION PCB footprint - Other - Other - 5x3.2x2.1mm
click to zoom
3D Models
7P-25.000MBP-T - TXC CORPORATION - 3D model - Other - 5x3.2x2.1mm
click to zoom

7P-25.000MBP-T Details

  • Manufacturer Part Number:

    7P-25.000MBP-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 6 PIN

  • Country Of Origin:

    Taiwan

  • Manufacturer:

    TXC Corporation

  • YTEOL:

    7.2

  • Additional Feature:

    ENABLE/DISABLE FUNCTION

  • Aging:

    1 PPM/YEAR

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.28%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    25 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Package Equivalence Code:

    LCC6(UNSPEC)

  • Physical Dimension:

    5.0mm x 3.2mm x 1.5mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

7P-25.000MBP-T Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for the 7P-25.000MBP-T is 260°C for 10 seconds, with a peak temperature of 240°C for 5 seconds.
  • Yes, the 7P-25.000MBP-T is designed to withstand high-vibration environments and can operate reliably in applications with vibration levels up to 10G.
  • The maximum operating temperature range for the 7P-25.000MBP-T is -40°C to 85°C, with a storage temperature range of -40°C to 125°C.
  • Yes, the 7P-25.000MBP-T is compatible with lead-free soldering processes and is RoHS compliant.
  • The typical start-up time for the 7P-25.000MBP-T is 10ms, with a maximum start-up time of 100ms.
