The recommended operating temperature range for the 7V-10.000MAHJ-T is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the oscillator's frequency stability and accuracy may degrade outside this range.
To ensure proper termination, connect a 10kΩ to 20kΩ resistor in series with the output pin to the load, and a 10pF to 100pF capacitor in parallel with the output pin to ground. This will help to minimize signal reflections and ensure a clean output signal.
The maximum allowable voltage for the input pin is 15V, as specified in the datasheet. Exceeding this voltage may damage the oscillator or affect its performance.
The 7V-10.000MAHJ-T is designed to operate in a variety of environments, including those with moderate vibration. However, it's essential to ensure that the oscillator is properly mounted and secured to prevent mechanical stress, which can affect its performance and reliability.
To troubleshoot issues with the oscillator's output frequency, check the power supply voltage, ensure proper termination, and verify that the oscillator is operating within its specified temperature range. If the issue persists, consult the datasheet or contact TXC Corporation's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7V-10.000MAHJ-T Overview

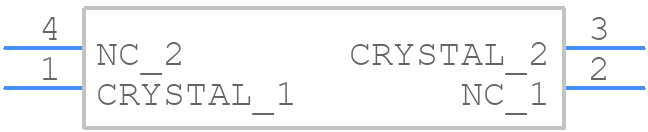

Use the download button to access the 7V-10.000MAHJ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7V-10,
or try a keyword search, such as Quartz Crystals
