8-1393239-4 - TE Connectivity

Description: General Purpose Power Relay, Bistable, 2 Coils, Polarized, Latching, 1 Form C SPDT-CO, 16 A Contact Rating, SCHRACK Power PCB Relay RT1

Download 8-1393239-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

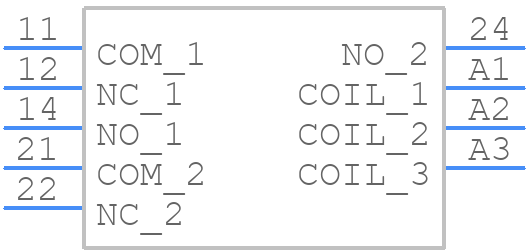

8-1393239-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

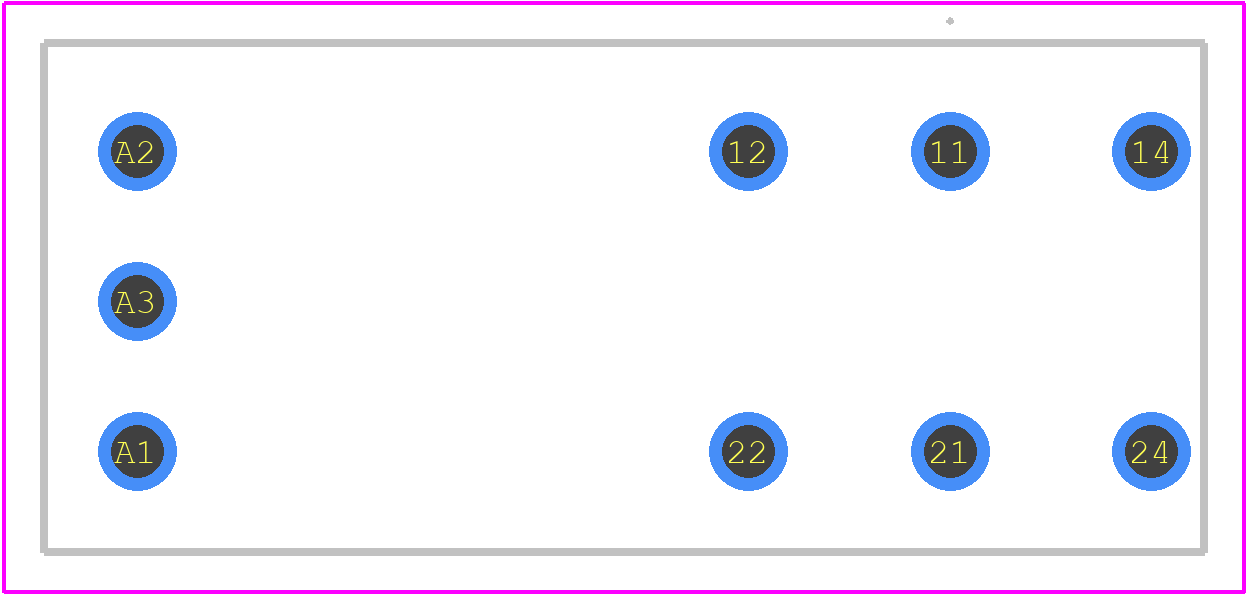

8-1393239-4 - TE Connectivity PCB footprint - Other - Other - 8-1393239-4-1
click to zoom
3D Models
8-1393239-4 - TE Connectivity - 3D model - Other - 8-1393239-4-1
click to zoom

8-1393239-4 Details

  • Manufacturer Part Number:

    8-1393239-4

  • Brand Name:

    OEG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.5

  • Body Breadth:

    12.7 mm

  • Body Height:

    15.7 mm

  • Body Length or Diameter:

    29 mm

  • Coil Operate Voltage(DC):

    2.1 V

  • Coil Power:

    600 mW

  • Coil Release Voltage(DC):

    1.7 V

  • Coil Resistance:

    15 Ω

  • Coil Voltage(DC)-Max:

    3 V

  • Coil Voltage-Nom:

    3 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Power Rating R Load:

    4000VA@400VAC

  • Contact (AC) Max Rating R Load:

    16A@400VAC

  • Contact Current(AC)-Max:

    16 A

  • Contact Current(DC)-Max:

    16 A

  • Contact Voltage(AC)-Max:

    400 V

  • Contact/Output Supply Type:

    AC

  • Dielectric Strength Between Coil and Contacts:

    5000 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • End Contact Material:

    SILVER NICKEL

  • Input Switching Control Type:

    Random

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    9

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    29mm x 12.7mm x 15.7mm

  • Reference Standard:

    CSA; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Terminal Length:

    0.003599187198374397 inch

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    14 g

8-1393239-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 8-1393239-4 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance on torque values for your specific application.
  • While the 8-1393239-4 connector is designed to be robust, it's essential to consider the specific vibration requirements of your application. TE Connectivity recommends consulting their application notes or contacting their technical support to determine the connector's suitability for high-vibration environments.
  • The 8-1393239-4 connector is designed to operate in a temperature range of -40°C to 105°C (-40°F to 221°F). However, for harsh environments, it's crucial to consult TE Connectivity's application notes or contact their technical support to determine the connector's suitability for your specific application.
  • The mating cycle life of the 8-1393239-4 connector is typically around 500-1000 cycles. However, this can vary depending on the specific application, mating forces, and environmental conditions. Consult TE Connectivity's application notes or contact their technical support for more information.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines for the 8-1393239-4 connector to ensure proper mating and to prevent damage to the connector or PCB. Consult TE Connectivity's application notes or contact their technical support for more information.
