8-1393792-7 - TE Connectivity

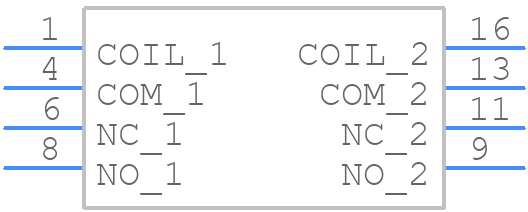

8-1393792-7 Details

• Manufacturer Part Number:

  8-1393792-7

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Additional Feature:

  ISOLATION, INSERTION LOSS AND VSWR MAX AT 900MHZ

• Body Breadth:

  10 mm

• Body Height:

  11 mm

• Body Length or Diameter:

  20.2 mm

• Coil Current(DC)-Max:

  0.025 A

• Coil Operate Voltage(DC):

  4.8 V

• Coil Power:

  150 mW

• Coil Release Voltage(DC):

  0.3 V

• Coil Resistance:

  240 Ω

• Coil Voltage(DC)-Max:

  6 V

• Coil Voltage-Nom:

  6 V

• Coil/Input Supply Type:

  AC/DC

• Contact (AC) Max Rating R Load:

  3A@250VAC

• Contact Current(AC)-Max:

  3 A

• Contact Current(DC)-Max:

  3 A

• Contact (DC) Max Rating R Load:

  3A@220VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  220 V

• Contact/Output Supply Type:

  AC/DC

• End Contact Material:

  Silver Nickel

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insertion Loss-Max:

  -0.27 dB

• Insulation Resistance:

  1000000000 Ω

• Isolation-Max:

  -20.7 dB

• Mounting Feature:

  PANEL MOUNT

• Number of Terminals:

  8

• Operate Time:

  11 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; TUBE

• Physical Dimension:

  20.2mm x 10mm X 10.8mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  RF RELAY

• Release Time:

  9 ms

• Sealing:

  RT3

• Surface Mount:

  NO

• Switching Time:

  20 ms

• Terminal Length:

  0.003200406400812802 inch

• Termination Type:

  SOLDER/QUICK CONNECT

• VSWR:

  1.4
