Part Image

8-353082-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Vertical | Number of Positions 3 | Number of Rows 1 | Contact Features: Contact Current Rating (Max) 30 AMP | Contact Mating Area Plating Material Gold | Contact Mating Area Plating Material Thickness 15 MICIN | Contact Mating Area Plating Material Thickness .38 MICM | Contact Type Pin | Housing Features: Centerline (Pitch) .399 INCH | Centerline (Pitch) 10.16 MM | Housing Material Polyester GF | Industry Standards: U

Download 8-353082-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8-353082-2 - TE Connectivity - PCB symbol
click to zoom

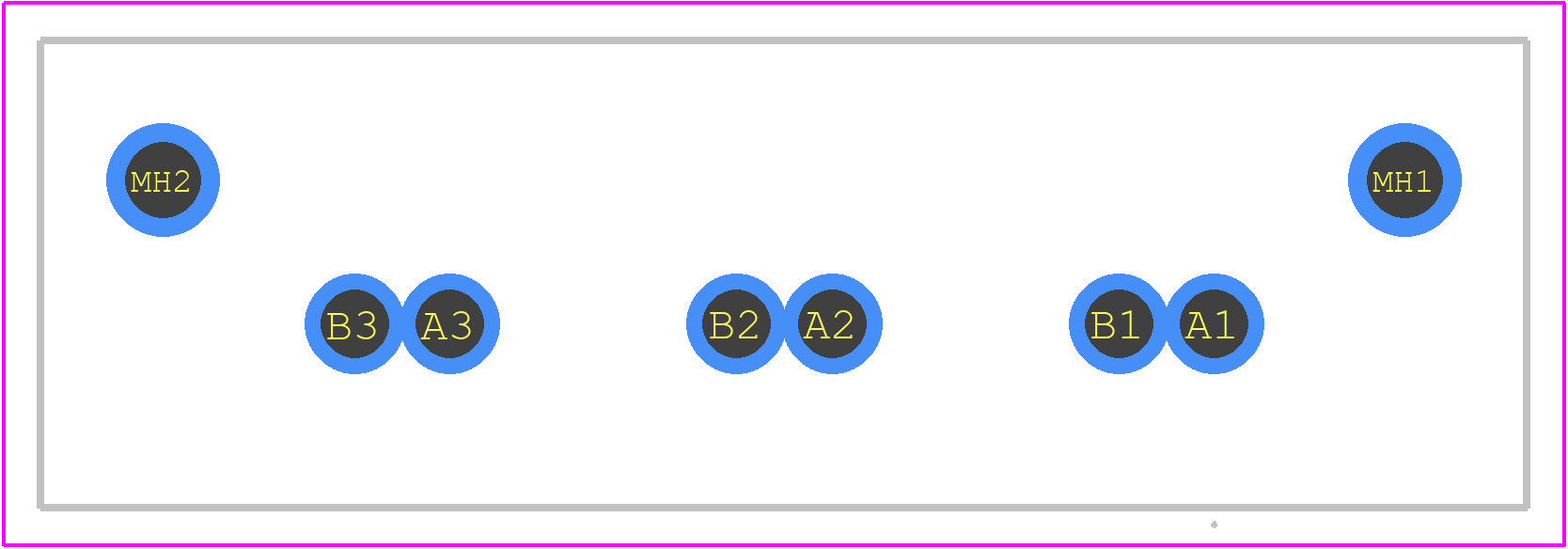

PCB Footprints
8-353082-2 - TE Connectivity PCB footprint - Other - Other - 8-353082-2-3
click to zoom
3D Models
8-353082-2 - TE Connectivity - 3D model - Other - 8-353082-2-3
click to zoom

8-353082-2 Details

  • Manufacturer Part Number:

    8-353082-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Additional Feature:

    POLARIZATION AVAILABLE

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    30A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    30 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    10.16 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

8-353082-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 8-353082-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 8-353082-2 connector has a IP20 rating, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environment applications, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 8-353082-2 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.
  • Yes, when using the 8-353082-2 connector, it's essential to ensure that the connector is properly installed and secured to prevent electrical shock or short circuits. Additionally, follow proper safety guidelines when working with electrical systems, and ensure the connector is used within its rated voltage and current specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8-353082-2 Overview

Use the download button to access the 8-353082-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8-353, or try a keyword search, such as Headers and Edge Type Connectors
