8000072453 - Weidmüller

Description: PCB connector (board connection), 320 V, 25.3 A, Pitch in mm: 5.00, Number of poles: 8, THT/THR solder connection, Tube

Download 8000072453 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8000072453 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

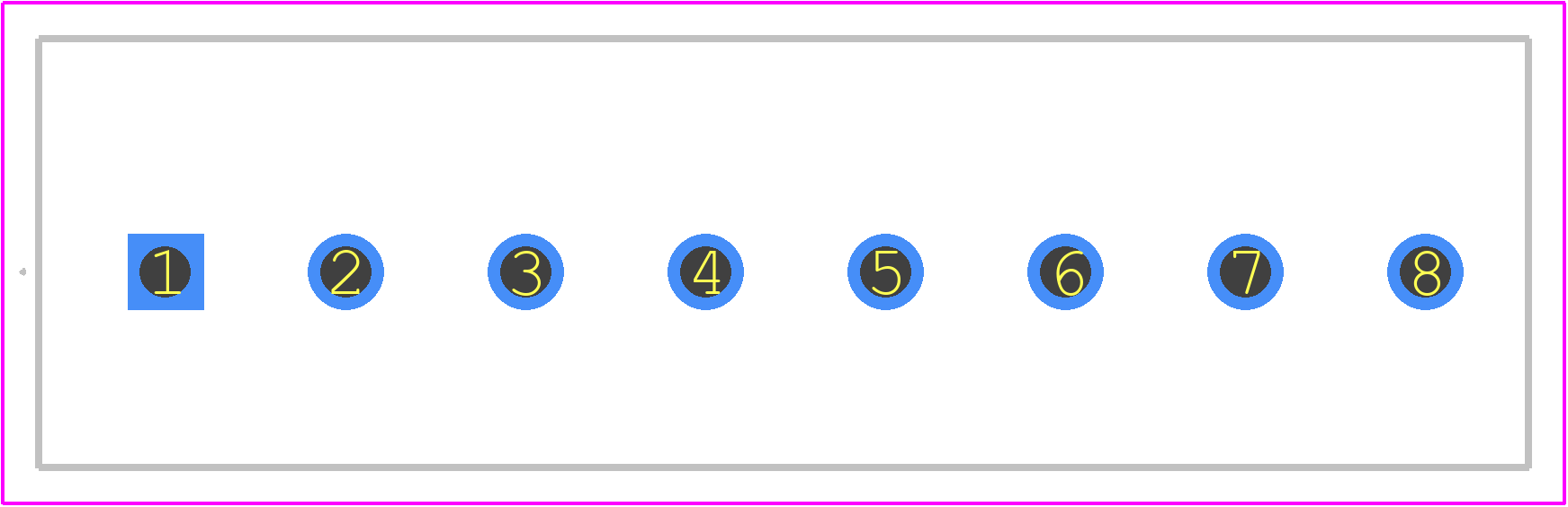

8000072453 - Weidmüller PCB footprint - Other - Other - 8000072453-2
click to zoom
3D Models
8000072453 - Weidmüller - 3D model - Other - 8000072453-2
click to zoom

8000072453 Details

  • Manufacturer Part Number:

    8000072453

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.57

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE9T

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    18.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; IEC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK
