8000078313 - Weidmüller

Description: PCB connector (board connection), 500 V, 30.4 A, Pitch in mm: 7.50, Number of poles: 8, THT/THR solder connection, Tube

Download 8000078313 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8000078313 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

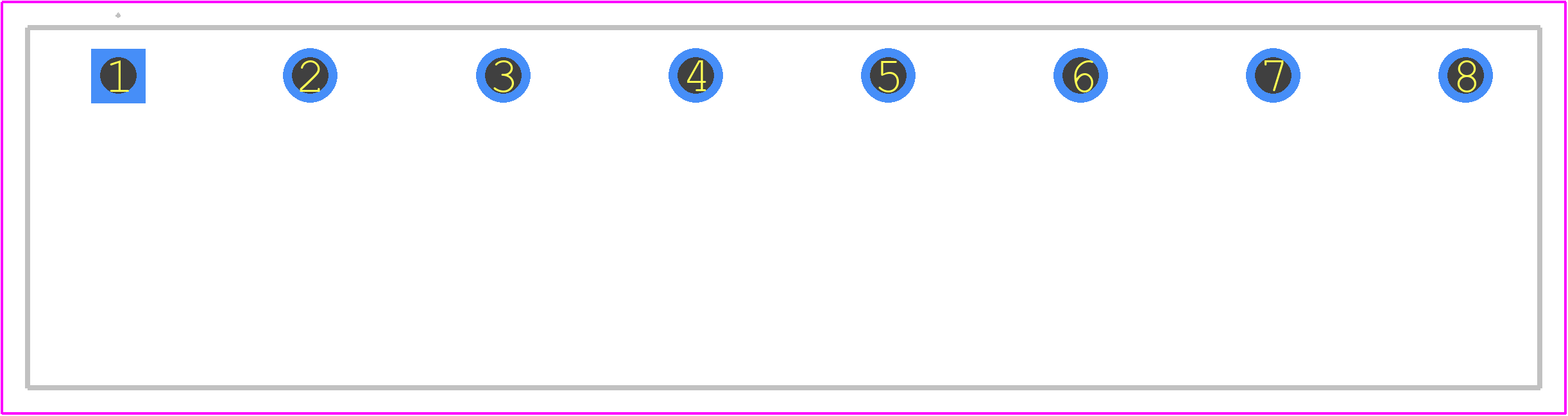

8000078313 - Weidmüller PCB footprint - Other - Other - 8000078313-2
click to zoom
3D Models
8000078313 - Weidmüller - 3D model - Other - 8000078313-2
click to zoom

8000078313 Details

  • Manufacturer Part Number:

    8000078313

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8000078313 Overview

Use the download button to access the 8000078313 schematic symbol, PCB footprint, and 3D model.
