800AWSP9M6QE - E-Switch

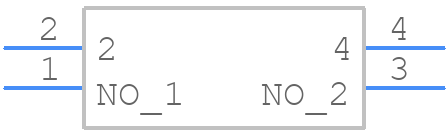

800AWSP9M6QE Details

• Manufacturer Part Number:

  800AWSP9M6QE

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.31

• Manufacturer:

  E-Switch Inc

• YTEOL:

  8.6

• Actuator Length:

  0.215 inch

• Actuator Material:

  GLASS FILLED NYLON/GLASS FILLED POLYSTER

• Actuator Type:

  PLUNGER

• Body Breadth:

  8.128 mm

• Body Height:

  5.08 mm

• Body Length or Diameter:

  9.29 mm

• Bushing Length:

  0.162 inch

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  3A@120VAC

• Contact Current(AC)-Max:

  3 A

• Contact Current(DC)-Max:

  3 A

• Contact (DC) Max Rating R Load:

  3A@28VDC

• Contact Function:

  OFF-(ON)

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  120 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  SILVER

• Housing Material:

  STAINLESS STEEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Force-Max:

  2.452 N

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• PCB Hole Count:

  4

• Sealing:

  EPOXY TERMINAL SEALED

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPST

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Finish:

  Silver (Ag)

• Terminal Length:

  0.13 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
