The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
Yes, the 801-43-036-10-012000 is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
The operating temperature range for the 801-43-036-10-012000 is -55°C to 125°C (-69°F to 257°F), making it suitable for use in a wide range of environments.
Yes, the 801-43-036-10-012000 is designed to withstand harsh environments, including exposure to moisture, dust, and chemicals, making it suitable for use in industrial, aerospace, and automotive applications.
While the 801-43-036-10-012000 is designed for use with 24 AWG wire, it can accommodate wire sizes ranging from 20 AWG to 26 AWG, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
801-43-036-10-012000 Overview

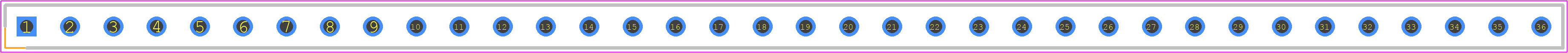

Use the download button to access the 801-43-036-10-012000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 801-4,
or try a keyword search, such as Headers and Edge Type Connectors
