- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 8020.2095
- Part Number 8020.2095
- Manufacturer SCHURTER
- Pin Count 2
- Part Category Fuse
- Package Category Other

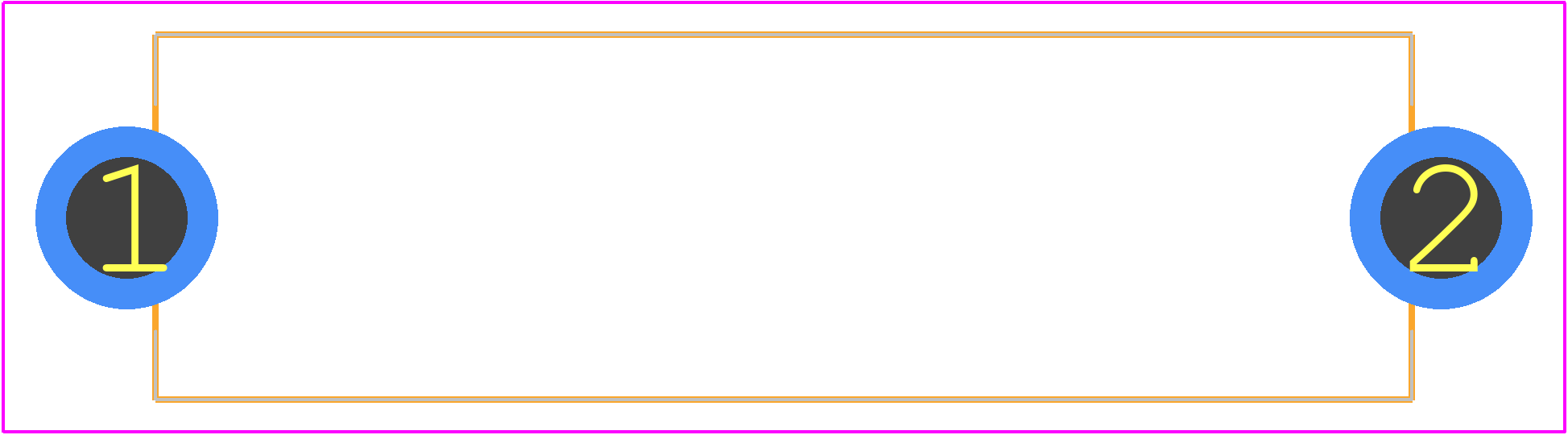

- Footprint Name Other - 8020.2095-6
- Released Date Mar 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
8020.2095 Details
-
Manufacturer Part Number:
8020.2095
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.10.00.40
-
Factory Lead Time:
51 Weeks, 2 Days
-
Manufacturer:
Schurter Electronic Components
-
YTEOL:
0
-
Body Height:
41.2 mm
-
Body Length or Diameter:
11.1 mm
-
Circuit Protection Type:
ELECTRIC FUSE
8020.2095 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the manufacturer's application notes.
-
No, the 8020.2095 is designed for use with fuse links up to 32V DC, and using it with higher voltage ratings may compromise safety and reliability.
-
Yes, the 8020.2095 is designed to meet the requirements of automotive applications, including high temperatures and vibration resistance.
-
Yes, the 8020.2095 is rated for operation up to 125°C, making it suitable for use in high-temperature environments.
-
Yes, the 8020.2095 is compliant with RoHS and REACH regulations, making it suitable for use in EU and other regions with similar regulations.
Trust Checks
Expert Contribution
System Verified
Community Approved
8020.2095 Overview
Use the download button to access the 8020.2095 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8020.,
or try a keyword search, such as Electric Fuses
