804-108 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 5 mm; 8-pole; Push-in CAGE CLAMP®

Download 804-108 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

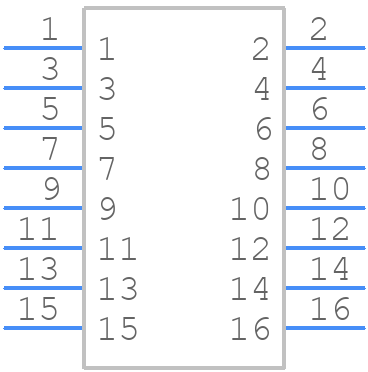

804-108 - Wago - PCB symbol
click to zoom
PCB Footprints

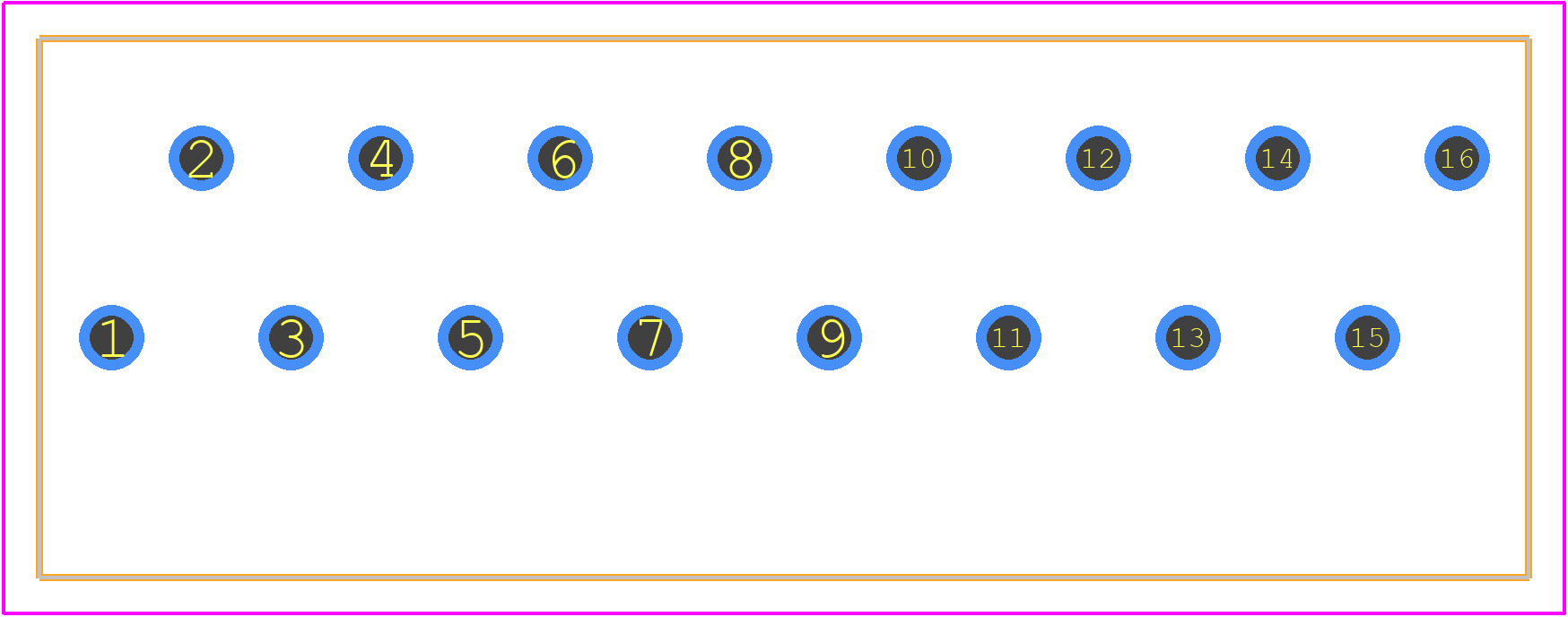

804-108 - Wago PCB footprint - Other - Other - 804-108-1
click to zoom
3D Models
804-108 - Wago - 3D model - Other - 804-108-1
click to zoom

804-108 Details

  • Manufacturer Part Number:

    804-108

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

804-108 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 804-108 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60068-2-6 and DIN EN 61373.
  • Yes, the 804-108 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and water ingress.
  • Yes, the 804-108 connector is suitable for use with stranded wire. However, it's recommended to use a ferrule or wire end sleeve to ensure a secure connection.
  • The operating temperature range of the 804-108 connector is -40°C to 125°C (-40°F to 257°F).

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

804-108 Overview

Use the download button to access the 804-108 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 804-1, or try a keyword search, such as Terminals and Terminal Blocks
