805-108 - Wago

Description: PCB terminal block; push-button; 1.5 mm²; Pin spacing 3.5 mm; 8-pole; Push-in CAGE CLAMP®; with test port

Download 805-108 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
805-108 - Wago - PCB symbol
click to zoom
PCB Footprints

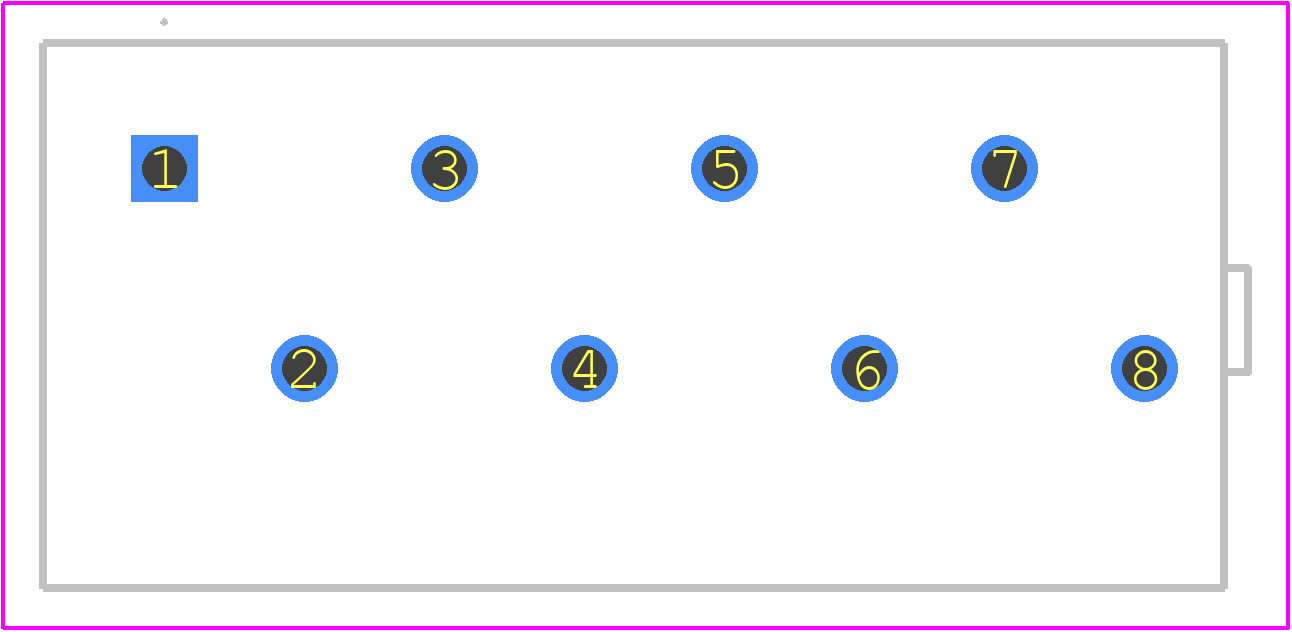

805-108 - Wago PCB footprint - Other - Other - 805-108-2
click to zoom
3D Models
805-108 - Wago - 3D model - Other - 805-108-2
click to zoom

805-108 Details

  • Manufacturer Part Number:

    805-108

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

805-108 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the screws on the 805-108 connector is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 805-108 connector is designed for use in harsh environments and meets the requirements of IP67 and IP69K, making it suitable for use in industrial, transportation, and outdoor applications.
  • Yes, the 805-108 connector is rated for up to 32 A and 600 V, making it suitable for power applications such as motor control, power distribution, and electrical panels.
  • Yes, the 805-108 connector is designed to be compatible with other WAGO products, including their TOPJOB S and XCOM series of connectors and terminals.
  • The operating temperature range of the 805-108 connector is -40°C to +125°C (-40°F to +257°F).
