8059-2G9 - TE Connectivity

Description: Conn Transistor Socket SKT 10 POS Solder ST Thru-Hole

Download 8059-2G9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8059-2G9 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

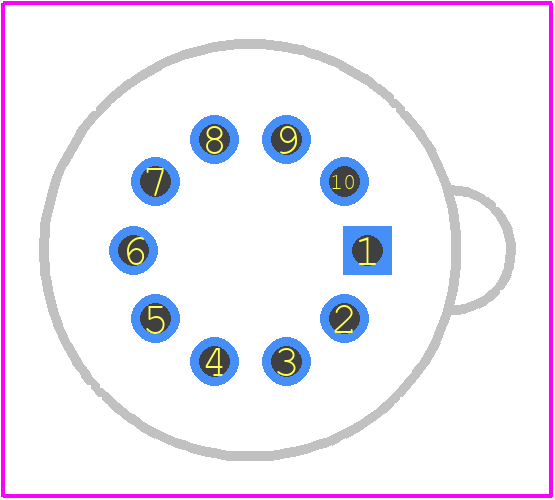

8059-2G9 - TE Connectivity PCB footprint - Other - Other - 8059-2G9
click to zoom

8059-2G9 Details

  • Manufacturer Part Number:

    8059-2G9

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    17 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT APPLICABLE

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    TO-5

  • Housing Material:

    GLASS FILLED POLYAMIDE

  • Number of Contacts:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Termination Type:

    SOLDER
