810001DK-21LF - Renesas Electronics

Description: The 810001-21 is a PLL based synchronous clock generator that is optimized for digital video clock jitter attenuation and frequency translation. The device contains two internal frequency multiplication stages that are cascaded in series. The first stage is a VCXO PLL that is optimized to provide reference clock jitter attenuation, and to support the complex PLL multiplication ratios needed for video rate conversion. The second stage is a FemtoClock™ frequency multiplier that provides the low jitter, high f

Download 810001DK-21LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

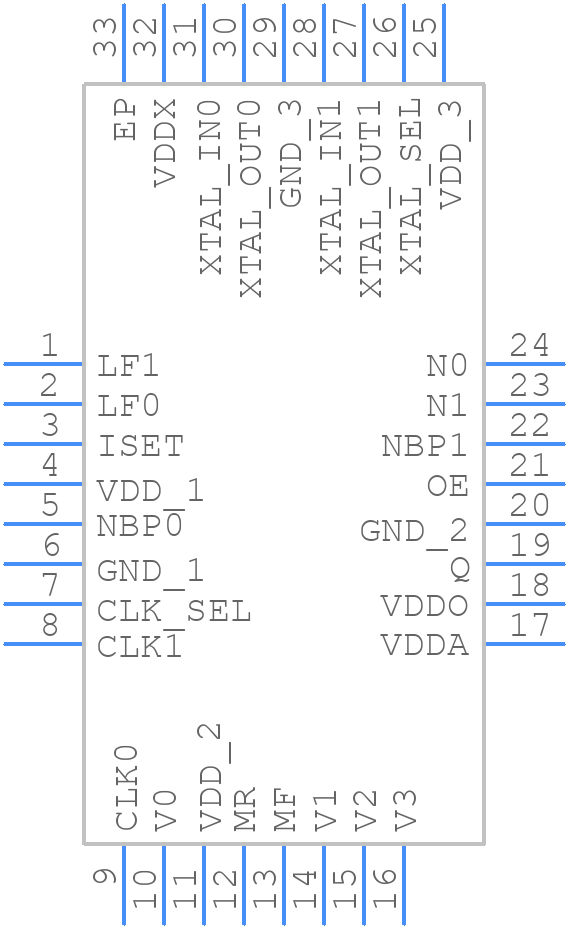

810001DK-21LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
810001DK-21LF - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (32-pin 5mm x 5mm QFN)
click to zoom
3D Models
810001DK-21LF - Renesas Electronics - 3D model - Quad Flat No-Lead - (32-pin 5mm x 5mm QFN)
click to zoom

810001DK-21LF Details

  • Manufacturer Part Number:

    810001DK-21LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Pin Count:

    32

  • Manufacturer Package Code:

    NLG32P1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Oscillator Type:

    LVCMOS/LVTTL

  • Terminal Finish:

    TIN

810001DK-21LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's user manual or application notes, which provide detailed guidelines for power-up and power-down sequences.
  • Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 10uF to 22uF, placed as close as possible to the device's power pins. The exact capacitor values and placement can be found in the device's datasheet or application notes.
  • Renesas provides troubleshooting guides and FAQs on their website, which cover common issues and their solutions. Additionally, engineers can contact Renesas' technical support team for assistance with specific problems.
  • The 810001DK-21LF is rated for operation in industrial temperature ranges (-40°C to 85°C) and can withstand certain environmental stresses, such as humidity and vibration. However, it's essential to consult the datasheet and application notes for specific details on operating conditions and environmental limitations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

810001DK-21LF Overview

Use the download button to access the 810001DK-21LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 81000, or try a keyword search, such as VCXO
