810252AGILF - Renesas Electronics

Description: The 810252I is a high performance, low jitter/low phase noise VCXO. The 810252I uses a low frequency and low cost pullable crystal to achieve jitter attenuation for synchronous Ethernet applications. The 810252I can take an input of 25MHz and produce two LVCMOS outputs of 25MHz. The device is packaged in a small 16 lead TSSOP package and is ideal for use on space constrained boards typically encountered in most synchronous ethernet applications.

Download 810252AGILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

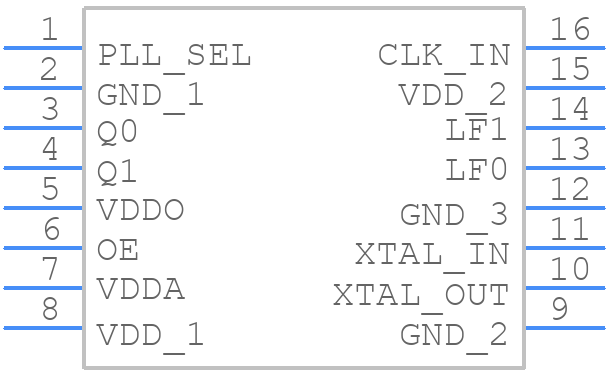

Symbol
810252AGILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
810252AGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (16-pin TSSOP, 173 Mil. Body)
click to zoom
3D Models
810252AGILF - Renesas Electronics - 3D model - Small Outline Packages - (16-pin TSSOP, 173 Mil. Body)
click to zoom

810252AGILF Details

  • Manufacturer Part Number:

    810252AGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    PGG16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

810252AGILF Overview

Use the download button to access the 810252AGILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 81025, or try a keyword search, such as PLL or Frequency Synthesis Circuits
