81026-500203-RB footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

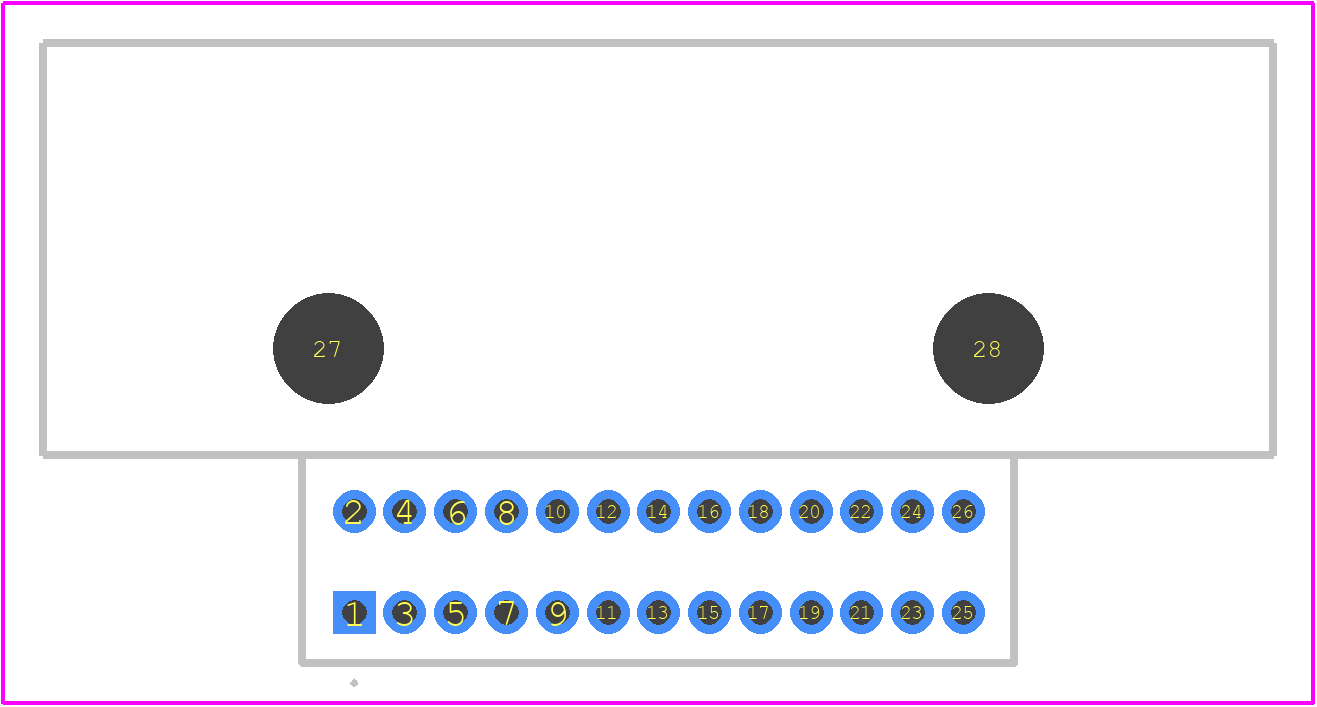

81026-500203-RB - 3M PCB footprint - Other - Other - 81026-500203-RB-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 81026-500203-RB
Part Number 81026-500203-RB
Manufacturer 3M
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - 81026-500203-RB-1
Released Date Feb 8, 2025
Last Modified Date Sep 11, 2025 2:09 PM UTC
Pinout / Pin List Click Here (Member Only)

81026-500203-RB Details

Manufacturer Part Number:
81026-500203-RB
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
13 Weeks, 4 Days
Manufacturer:
3M Interconnect
YTEOL:
9.15
Additional Feature:
3M, POLARIZED
Board Mounting Option:
PEG
Body Breadth:
0.31 inch
Body Depth:
0.606 inch
Body Length:
1.21 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Dielectric Withstanding Voltage:
700VAC V
Filter Feature:
NO
IEC Conformance:
NO
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.1 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
30u inch
Polarization Key:
SHRD TRIPOLARIZED
Rated Current (Signal):
0.75 A
Reference Standard:
UL
Terminal Length:
0.09 inch
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
26
UL Flammability Code:
94V-0

81026-500203-RB Frequently Asked Questions (FAQs)

The recommended torque for mating and unmating the 81026-500203-RB connector is typically between 0.5 to 1.5 Nm (4.4 to 13.3 in-lbs), but it's recommended to consult the 3M Interconnect application notes or contact their technical support for specific guidance.
The 81026-500203-RB connector is designed to meet the requirements of various industries, including automotive, industrial, and aerospace. While it can withstand some level of vibration, it's essential to consult the datasheet and 3M Interconnect's environmental testing reports to determine its suitability for your specific application.
The 81026-500203-RB connector is designed for signal integrity and can support high-speed data transmission up to 10 Gbps. However, the actual data transmission speed may depend on the specific application, cable quality, and system design. It's recommended to consult with 3M Interconnect's technical support or a signal integrity expert to ensure the connector meets your specific requirements.
The 81026-500203-RB connector has a specific footprint and layout. To ensure compatibility, you should consult the datasheet and 3M Interconnect's design guidelines to verify that the connector is compatible with your PCB or module design. You may also want to consult with a mechanical engineer or PCB designer to ensure proper integration.
The lead time and minimum order quantity for the 81026-500203-RB connector may vary depending on the region, distributor, and availability. It's recommended to contact 3M Interconnect's sales representative or authorized distributors to get the most up-to-date information on lead time and minimum order quantity.

Trust Checks

Community Provided

System Verified

Community Approved

81026-500203-RB Overview

Use the download button to access the 81026-500203-RB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 81026, or try a keyword search, such as Headers and Edge Type Connectors
