812-22-004-30-004191 - Mill-Max

Description: Headers & Wire Housings PCB Mount Spring-Loaded Header Vertical,4 pin, single row

Download 812-22-004-30-004191 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
812-22-004-30-004191 - Mill-Max - PCB symbol
click to zoom
PCB Footprints

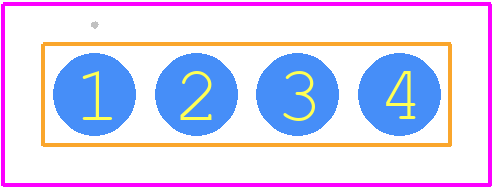

812-22-004-30-004191 - Mill-Max PCB footprint - Other - Other - 812-22-004-30-004191-1
click to zoom
3D Models
812-22-004-30-004191 - Mill-Max - 3D model - Other - 812-22-004-30-004191-1
click to zoom

812-22-004-30-004191 Details

  • Manufacturer Part Number:

    812-22-004-30-004191

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Mill-Max Mfg Corp

  • YTEOL:

    8

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0
