816-112 - Wago

Description: 2-conductor PCB terminal block; 1.5 mm²; Pin spacing 5 mm; 12-pole; Push-in CAGE CLAMP®

Download 816-112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
816-112 - Wago - PCB symbol
click to zoom
PCB Footprints

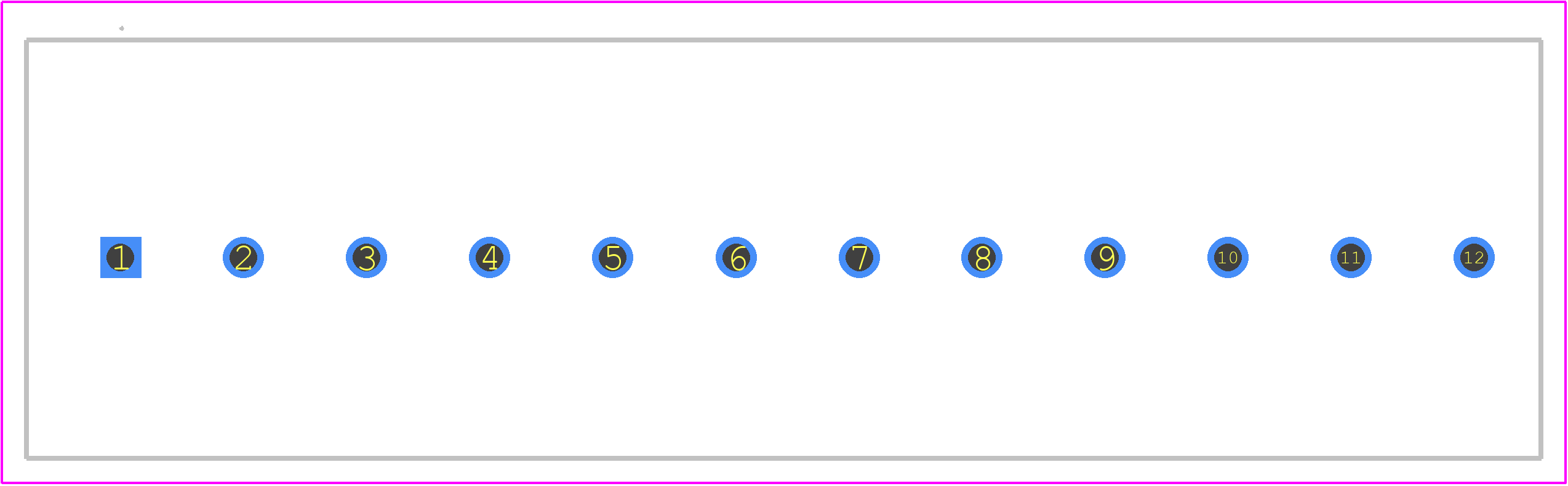

816-112 - Wago PCB footprint - Other - Other - 816-112-1
click to zoom
3D Models
816-112 - Wago - 3D model - Other - 816-112-1
click to zoom

816-112 Details

  • Manufacturer Part Number:

    816-112

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

816-112 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 816-112 connector is designed to withstand high-vibration environments, but it's recommended to follow WAGO's guidelines for vibration-resistant connections and to perform thorough testing in your specific application.
  • The 816-112 connector has a IP67 rating, making it suitable for outdoor use in harsh environments, but it's essential to ensure proper sealing and protection from environmental factors such as UV radiation, moisture, and extreme temperatures.
  • Yes, the 816-112 connector is designed to accommodate stranded wires, but it's recommended to use wires with a minimum strand count of 30 and to follow WAGO's guidelines for wire preparation and connection.
  • The maximum operating temperature for the 816-112 connector is 125°C, but it's recommended to derate the connector's performance at temperatures above 85°C.
