816-22-003-10-009101 - Mill-Max

Description: Headers & Wire Housings STD SPRING-LOADED CONNECTOR

Download 816-22-003-10-009101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
816-22-003-10-009101 - Mill-Max - PCB symbol
click to zoom
PCB Footprints

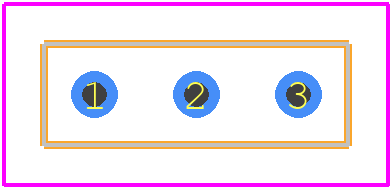

816-22-003-10-009101 - Mill-Max PCB footprint - Other - Other - 816-22-003-10-009101-2
click to zoom
3D Models
816-22-003-10-009101 - Mill-Max - 3D model - Other - 816-22-003-10-009101-2
click to zoom

816-22-003-10-009101 Details

  • Manufacturer Part Number:

    816-22-003-10-009101

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Mill-Max Mfg Corp

  • YTEOL:

    10

  • Body Breadth:

    0.1 inch

  • Body Depth:

    0.11 inch

  • Body Length:

    0.3 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    RND PIN-SKT

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED NYLON46

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    20u inch

  • Terminal Length:

    0.085 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

816-22-003-10-009101 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections without damaging the terminals.
  • Yes, the 816-22-003-10-009101 connectors are designed to withstand high-vibration environments, making them suitable for applications such as aerospace, automotive, and industrial equipment.
  • The connectors are rated for operating temperatures between -55°C to 150°C and can withstand humid environments, but it's essential to follow proper sealing and insulation techniques to ensure reliable performance.
  • The 816-22-003-10-009101 connectors are rated for a minimum of 500 mating cycles, ensuring reliable connections even in applications with frequent connect/disconnect operations.
  • Yes, the connectors are designed for automated assembly and can be easily integrated into pick-and-place machines and other automated manufacturing systems.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

816-22-003-10-009101 Overview

Use the download button to access the 816-22-003-10-009101 schematic symbol, PCB footprint, and 3D model.
