816-AG12D-ES-LF footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

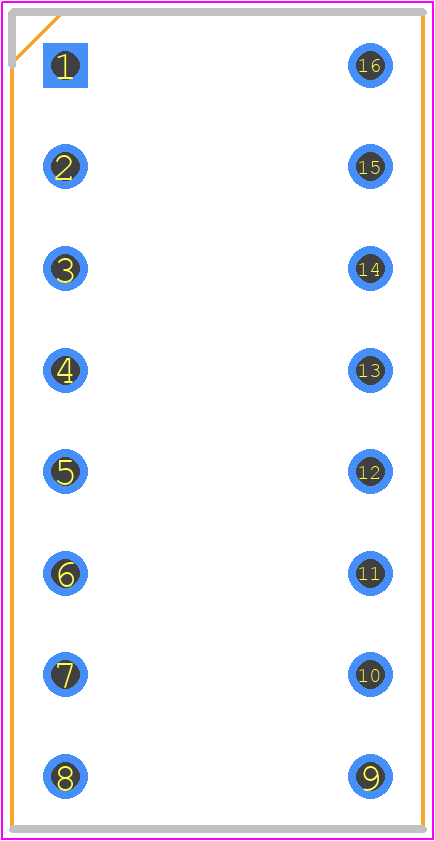

816-AG12D-ES-LF - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 816-AG12D-ES-LF

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 816-AG12D-ES-LF
Part Number 816-AG12D-ES-LF
Manufacturer TE Connectivity
Pin Count 16
Part Category Connector
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 816-AG12D-ES-LF
Released Date Feb 23, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

816-AG12D-ES-LF Details

Manufacturer Part Number:
816-AG12D-ES-LF
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
LEAD FREE
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
YTEOL:
0
Additional Feature:
STANDARD: UL 94V-0
Body Depth:
0.105 inch
Body Length:
0.8 inch
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Material:
NOT SPECIFIED
Current Rating:
3 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP16
Housing Material:
THERMOPLASTIC POLYESTER
Insulation Resistance:
5000000000 Ω
JESD-609 Code:
e3
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
16
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
PCB Contact Row Spacing:
0.30000000000000004 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

816-AG12D-ES-LF Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in) for the screw locks on the 816-AG12D-ES-LF connector.
Yes, the 816-AG12D-ES-LF connector is designed to withstand high-vibration environments and is suitable for applications such as industrial, automotive, and aerospace.
The 816-AG12D-ES-LF connector has a IP67 rating, which means it is protected against dust and temporary immersion in water up to 1 meter for 30 minutes. However, it is not recommended for exposure to harsh chemicals or prolonged immersion in water.
The maximum operating temperature range for the 816-AG12D-ES-LF connector is -40°C to 125°C (-40°F to 257°F).
Yes, the 816-AG12D-ES-LF connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability.

Trust Checks

Community Provided

System Verified

Community Approved

816-AG12D-ES-LF Overview

Use the download button to access the 816-AG12D-ES-LF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 816-A, or try a keyword search, such as Sockets and Chip Carriers
