8161SH9ABE2 - LITTELFUSE

8161SH9ABE2 Details

• Manufacturer Part Number:

  8161SH9ABE2

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  Littelfuse Inc

• Actuator Length:

  0.284 inch

• Actuator Type:

  PUSHBUTTON

• Body Breadth:

  12.7 mm

• Body Height:

  8.41 mm

• Body Length or Diameter:

  12.57 mm

• Bushing Diameter:

  0.249 inch

• Bushing Length:

  0.3 inch

• Bushing Type:

  UNTHREADED

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact Current(AC)-Max:

  0.02 A

• Contact Current(DC)-Max:

  0.02 A

• Contact Function:

  ON-ON

• Contact Resistance:

  0.1 mΩ

• Contact Voltage(AC)-Max:

  20 V

• Contact Voltage(DC)-Max:

  20 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  STAINLESS STEEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

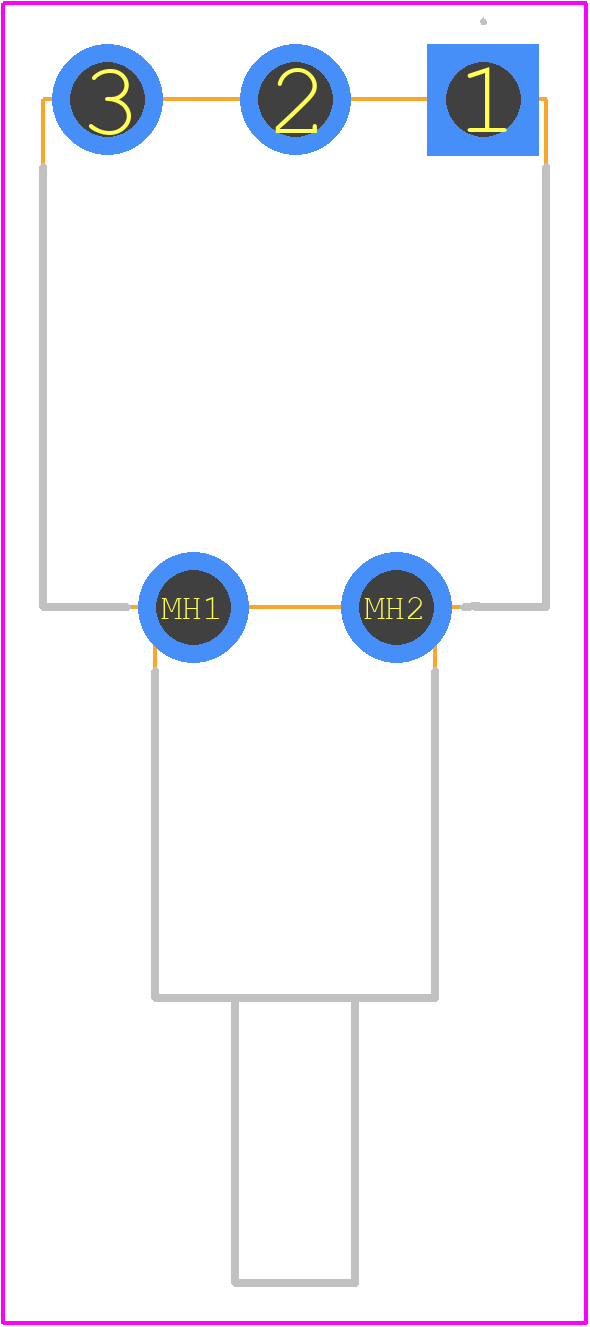

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  65 °C

• Operating Temperature-Min:

  -30 °C

• PCB Hole Count:

  3

• Sealing:

  EPOXY

• Solderability:

  MIL-STD

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPDT

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Finish:

  Gold (Au) - with Nickel (Ni) barrier

• Terminal Length:

  0.13 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
