- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 8174
- Part Number 8174
- Manufacturer Keystone Electronics
- Pin Count 4
- Part Category Connector
- Package Category Other

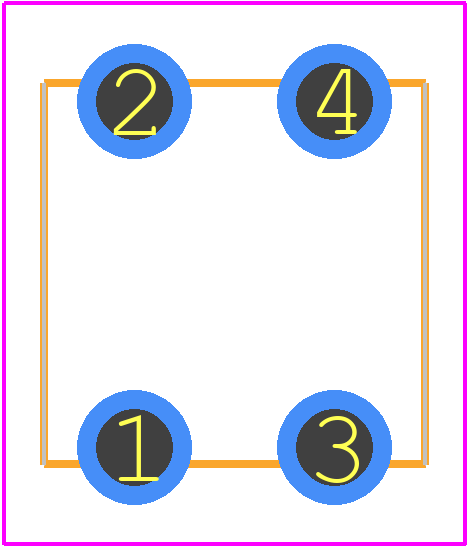

- Footprint Name Other - 8174-2
- Released Date Mar 26, 2018
- Last Modified Date Jan 20, 2025 12:23 PM UTC
- Pinout / Pin List Click Here (Member Only)
8174 Details
-
Manufacturer Part Number:
8174
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Keystone Electronics Corp
-
YTEOL:
8
-
Terminal and Terminal Block Type:
POWER TERMINAL
8174 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.8 Nm (4-6 in-lbs).
-
Yes, the 8174 is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration environments.
-
The maximum wire size that can be used with the 8174 is 14 AWG (1.5 mm²).
-
Yes, the 8174 is made from UL94-V0 rated materials and meets the flammability standards.
-
The 8174 is designed to operate in environments with up to 95% relative humidity, but it's not recommended for use in wet or submerged environments.
Trust Checks
Expert Contribution
System Verified
Community Approved
8174 Overview

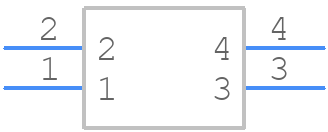

Use the download button to access the 8174 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Terminals and Terminal Blocks
