The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections without damaging the terminals.
Yes, the 818-22-006-10-009101 connectors are designed to withstand high-vibration environments, making them suitable for applications such as aerospace, automotive, and industrial equipment.
The connectors are rated for operating temperatures between -55°C to 150°C and can withstand humid environments, but it's essential to follow proper sealing and insulation techniques to ensure reliable performance.
The 818-22-006-10-009101 connectors are rated for a minimum of 500 mating cycles, ensuring reliable connections even in applications with frequent connect/disconnect operations.
Yes, the connectors are designed for automated assembly and can be easily integrated into pick-and-place machines and other automated manufacturing systems.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
818-22-006-10-009101 Overview

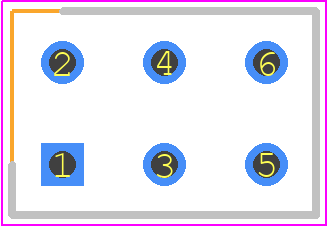

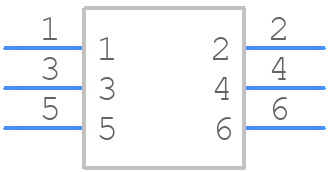

Use the download button to access the 818-22-006-10-009101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 818-2,
or try a keyword search, such as Sockets and Chip Carriers
