818-22-008-10-009101 - Mill-Max

Description: 8 Position Spring Piston Connector Through Hole

Download 818-22-008-10-009101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

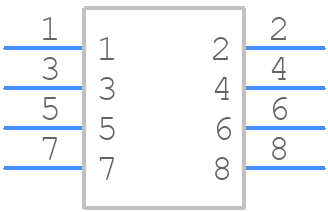

818-22-008-10-009101 - Mill-Max - PCB symbol
click to zoom
PCB Footprints

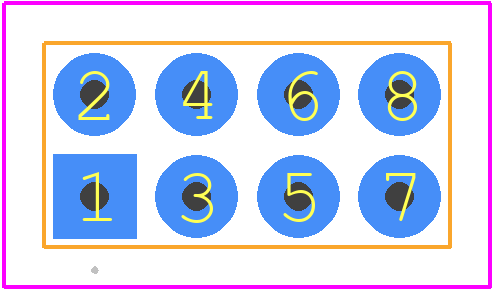

818-22-008-10-009101 - Mill-Max PCB footprint - Other - Other - 818-22-008-10-009101-1
click to zoom
3D Models
818-22-008-10-009101 - Mill-Max - 3D model - Other - 818-22-008-10-009101-1
click to zoom

818-22-008-10-009101 Details

  • Manufacturer Part Number:

    818-22-008-10-009101

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Mill-Max Mfg Corp

  • YTEOL:

    7.3

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP8

  • Housing Material:

    PLASTIC

  • JESD-609 Code:

    e4

  • Number of Contacts:

    8

818-22-008-10-009101 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
  • Yes, the 818-22-008-10-009101 is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
  • The operating temperature range for the 818-22-008-10-009101 is -55°C to 125°C (-69°F to 257°F), making it suitable for use in a wide range of environments.
  • Yes, the 818-22-008-10-009101 is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The typical lead time for delivery of the 818-22-008-10-009101 is 6-8 weeks, but this may vary depending on the quantity and specific requirements of the order.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

818-22-008-10-009101 Overview

Use the download button to access the 818-22-008-10-009101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 818-2, or try a keyword search, such as Sockets and Chip Carriers
