The recommended torque for the screws on the 8197-SEMS is 6-8 in-lbs (0.7-0.9 Nm).
Yes, the 8197-SEMS is designed to withstand high-vibration environments and is suitable for use in applications with vibration levels up to 10G.
The operating temperature range of the 8197-SEMS is -40°C to +125°C (-40°F to +257°F).
Yes, the 8197-SEMS is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The recommended cleaning process for the 8197-SEMS is to use a mild detergent and water, followed by a dry nitrogen blow to remove any residue.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8197-SEMS Overview

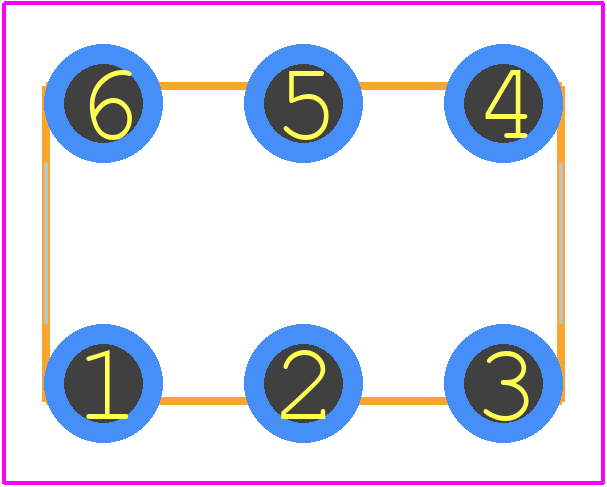

Use the download button to access the 8197-SEMS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8197-,
or try a keyword search, such as Terminals and Terminal Blocks
