The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs).
Yes, the 8197 is designed to withstand high-vibration environments. However, it's recommended to secure the device using the screw terminals and ensure proper mounting to prevent damage.
The 8197 can operate in temperatures ranging from -40°C to 105°C (-40°F to 221°F).
Yes, the 8197 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
The 8197 has a moisture sensitivity level (MSL) rating of 3, which means it can withstand normal humidity levels. However, it's not recommended for use in wet or submerged environments.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8197 Overview

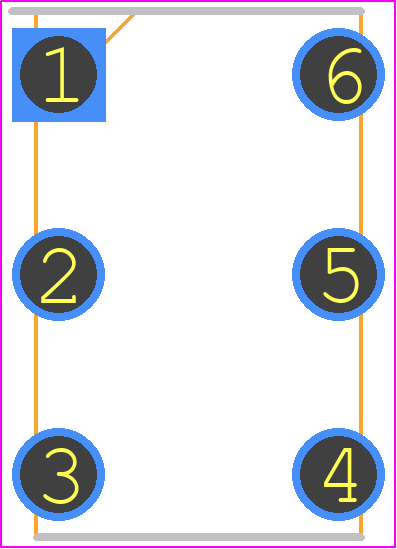

Use the download button to access the 8197 schematic symbol, PCB footprint, and 3D model.
