- Part Number 8199-2
- Manufacturer Keystone Electronics
- Pin Count 6
- Part Category Connector
- Package Category Other

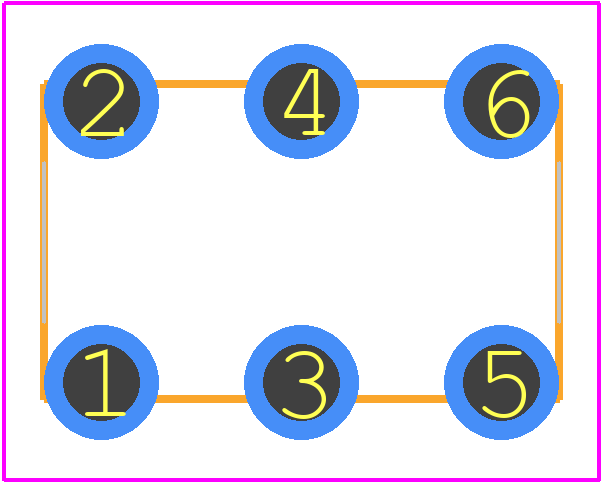

- Footprint Name Other - 8199-2-2
- Released Date Jan 25, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
8199-2 Details
-
Manufacturer Part Number:
8199-2
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Keystone Electronics Corp
-
YTEOL:
7.7
-
Rated Current:
30 A
-
Terminal and Terminal Block Type:
POWER TERMINAL
8199-2 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs).
-
Yes, the 8199-2 is designed to withstand vibrations up to 10G (10-2000 Hz) and can be used in high-vibration applications.
-
The operating temperature range for the 8199-2 is -40°C to 105°C (-40°F to 221°F).
-
Yes, the 8199-2 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
-
The recommended wire size for the screw terminals is 24-18 AWG (0.25-1.5 mm²).
Trust Checks
Expert Contribution
System Verified
Community Approved
8199-2 Overview
Use the download button to access the 8199-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8199-,
or try a keyword search, such as Terminals and Terminal Blocks
