- Part Number 8199-4
- Manufacturer Keystone Electronics
- Pin Count 6
- Part Category Connector
- Package Category Other

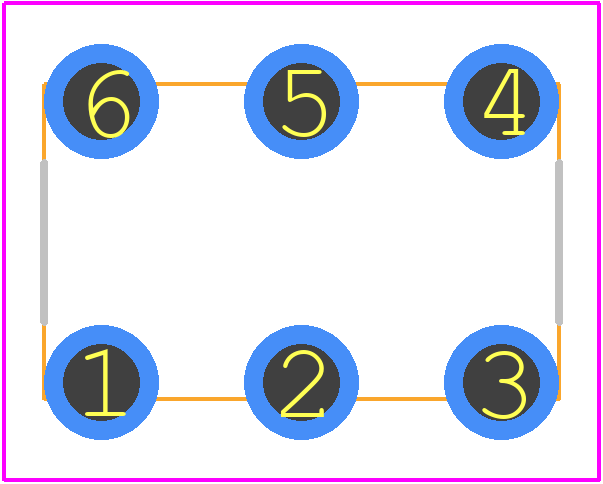

- Footprint Name Other - 8199-4-3
- Released Date Jun 9, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
8199-4 Details
-
Manufacturer Part Number:
8199-4
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Keystone Electronics Corp
-
Terminal and Terminal Block Type:
POWER TERMINAL
8199-4 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.0 in-lbs (0.056-0.113 Nm) to ensure secure connections.
-
Yes, the 8199-4 is designed to withstand vibration and shock, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
-
The 8199-4 is rated for indoor use, but it can be used in outdoor or harsh environments with proper sealing and protection. Consult the manufacturer's guidelines for environmental considerations.
-
The 8199-4 is designed to accommodate wire sizes from 20 AWG to 14 AWG. Using larger wire sizes may require additional preparation or specialized tools.
-
The 8199-4 is designed for use with PVC-insulated wires, but it can be used with other insulation materials (e.g., Teflon, silicone) with proper preparation and compatibility verification.
