- Part Number 8199-5
- Manufacturer Keystone Electronics
- Pin Count 6
- Part Category Connector
- Package Category Other

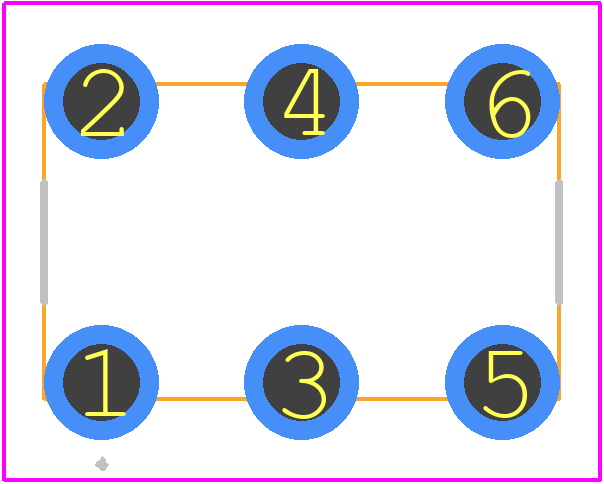

- Footprint Name Other - 8199-5-2
- Released Date Jul 28, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
8199-5 Details
-
Manufacturer Part Number:
8199-5
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Keystone Electronics Corp
-
Terminal and Terminal Block Type:
POWER TERMINAL
8199-5 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm).
-
Yes, the 8199-5 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
-
The 8199-5 is not designed for outdoor use and should be used in a controlled environment. If outdoor use is required, consider using a connector with a higher IP rating or applying additional protection such as a conformal coating.
-
No, the 8199-5 is designed for use with wire sizes AWG 20-24. Using a larger wire size may compromise the connector's performance and reliability.
-
Yes, the 8199-5 is RoHS and REACH compliant, making it suitable for use in applications that require these environmental standards.
