Description:The 821024 is a single-chip, four channel PCM CODEC with on-chip filters. The device provides analog-to-digital and digital-to-analog conversions and supports both a-law and m-law companding. The digital filters in 821024 provides the necessary transmit and receive filtering for voice telephone circuit to interface with time-division multiplexed systems. All of the digital filters are performed in digital signal processors operating from an internal clock, which is derived from MCLK. The fixed filters set t
Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The 821024JG also has a built-in overcurrent detection feature, but it's not enabled by default and requires external components to function.
While the datasheet specifies an operating temperature range of -40°C to 105°C, Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliability and prevent thermal shutdown.
Renesas provides a troubleshooting guide in their application note (APL-AN-1202) which covers common issues with the I2C interface, such as bus contention, clock stretching, and slave address conflicts, along with recommended solutions and debugging techniques.
Renesas recommends a specific power-up sequence, including a soft-start procedure, to ensure proper device initialization and prevent latch-up. A recommended power-down sequence is also provided to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
821024JG Overview

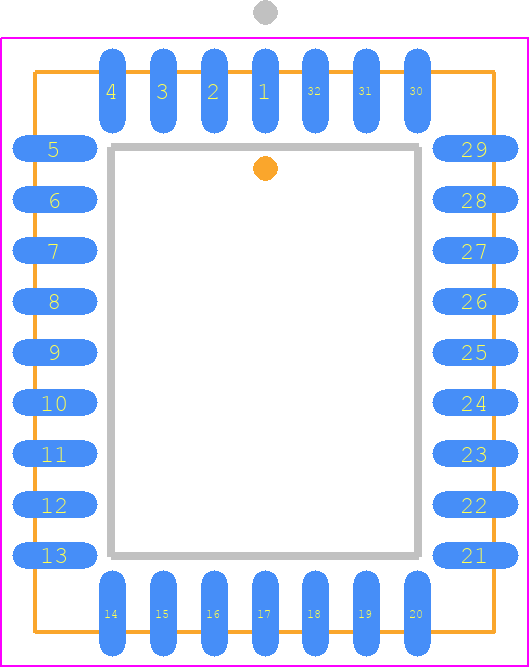

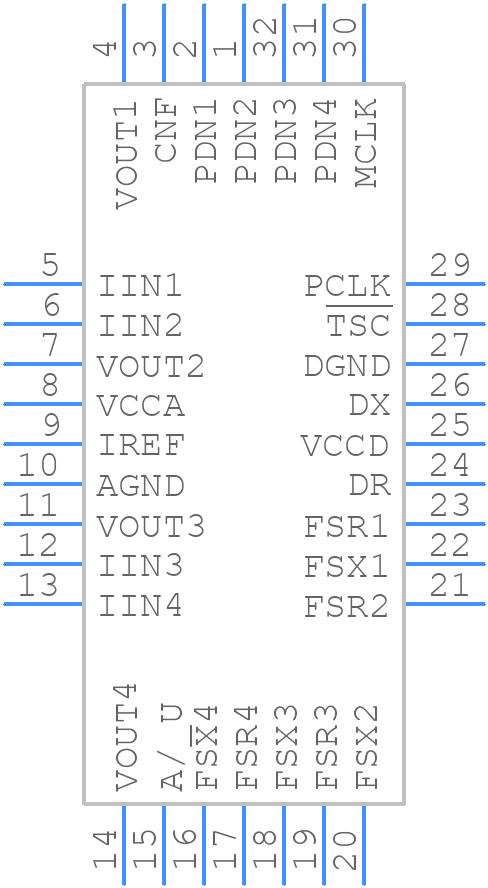

Use the download button to access the 821024JG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 82102,
or try a keyword search, such as Codecs
