A 4-layer PCB with a solid ground plane and thermal vias is recommended to ensure optimal thermal performance. Additionally, placing thermal pads under the package can help to dissipate heat more efficiently.
To ensure reliable communication, make sure to follow the recommended bus termination and pull-up resistor values, and implement proper signal routing and shielding to minimize electromagnetic interference (EMI).
Power sequencing is critical to prevent damage to the device. Ensure that the power supplies are sequenced correctly, and the voltage ramp-up/ramp-down rates are within the recommended specifications to prevent damage to the device.
Implement a robust error handling mechanism to detect and recover from errors, such as checksum errors, parity errors, or timeouts. This can include implementing retry mechanisms, error counters, and fault detection circuits.
For high-temperature applications, ensure that the device is properly heat-sinked, and consider using thermal interface materials to improve heat transfer. Additionally, reduce the power consumption and clock frequency to minimize heat generation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
821024JG8 Overview

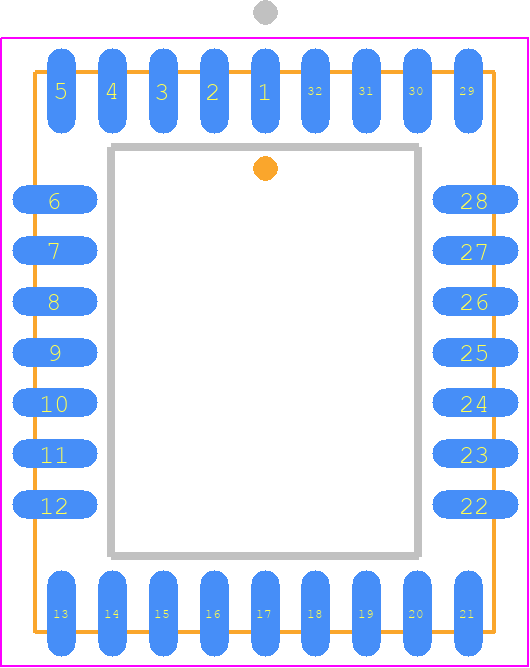

Use the download button to access the 821024JG8 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 82102,
or try a keyword search, such as Codecs
