8221SHCGE - LITTELFUSE

8221SHCGE Details

• Manufacturer Part Number:

  8221SHCGE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Vietnam

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.31

• Manufacturer:

  Littelfuse Inc

• YTEOL:

  8

• Actuator Length:

  0.218 inch

• Actuator Type:

  PLUNGER

• Additional Feature:

  PANEL MOUNTABLE

• Body Breadth:

  11.43 mm

• Body Height:

  10.41 mm

• Body Length or Diameter:

  12.7 mm

• Bushing Diameter:

  0.249 inch

• Bushing Length:

  0.25 inch

• Bushing Type:

  1/4-40

• Center Contact Plating:

  GOLD OVER NICKEL

• Contact (AC) Max Power Rating R Load:

  0.4VA@20VAC

• Contact (AC) Max Rating R Load:

  1A@120VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@28VDC

• Contact Function:

  ON-(ON)

• Contact Resistance:

  0.1 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  120 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  60000 Cycle(s)

• End Contact Plating:

  GOLD OVER NICKEL

• Housing Material:

  STAINLESS STEEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -30 °C

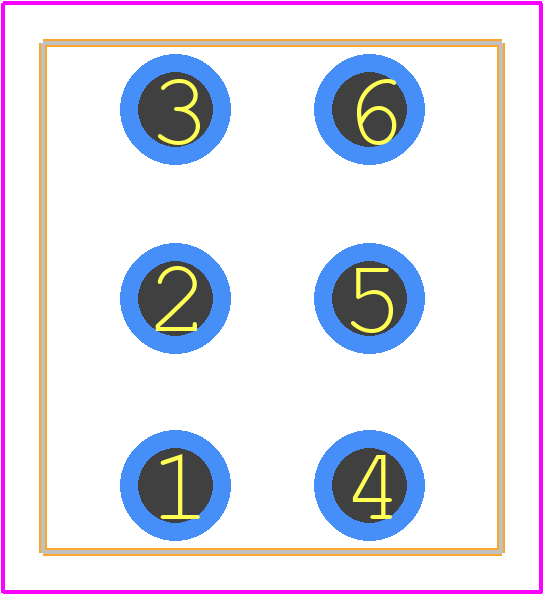

• PCB Hole Count:

  6

• Sealing:

  EPOXY TERMINAL SEALED

• Solderability:

  MIL-STD

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  DPDT

• Switch Type:

  MINIATURE SWITCH

• Terminal Finish:

  GOLD OVER NICKEL

• Terminal Length:

  0.189 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
