823-22-006-10-004101 - Mill-Max

Description: Headers & Wire Housings STD SPRING-LOADED CONNECTOR

Download 823-22-006-10-004101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

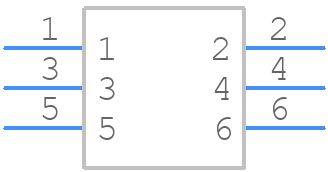

823-22-006-10-004101 - Mill-Max - PCB symbol
click to zoom
PCB Footprints

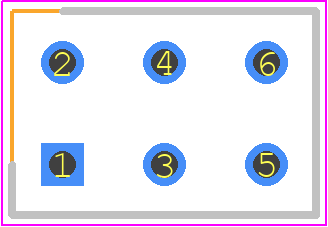

823-22-006-10-004101 - Mill-Max PCB footprint - Header, Vertical - Header, Vertical - 823-22-006-10-004101
click to zoom
3D Models
823-22-006-10-004101 - Mill-Max - 3D model - Header, Vertical - 823-22-006-10-004101
click to zoom

823-22-006-10-004101 Details

  • Manufacturer Part Number:

    823-22-006-10-004101

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Mill-Max Mfg Corp

  • YTEOL:

    8

  • Additional Feature:

    LOW PROFILE

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

823-22-006-10-004101 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections without damaging the terminals.
  • Yes, the 823-22-006-10-004101 connectors are designed to withstand high-vibration environments, making them suitable for applications such as aerospace, automotive, and industrial equipment.
  • The connectors are rated for operating temperatures between -55°C to 150°C and can withstand humidity up to 95% RH. However, it's recommended to consult with Mill-Max Mfg Corp or a qualified engineer for specific application guidance.
  • The 823-22-006-10-004101 connectors are rated for a minimum of 500 mating cycles, ensuring reliable connections over an extended period.
  • Yes, the 823-22-006-10-004101 connectors are RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for environmental sustainability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

823-22-006-10-004101 Overview

Use the download button to access the 823-22-006-10-004101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 823-2, or try a keyword search, such as Headers and Edge Type Connectors
