The recommended torque for the screw terminals is typically between 0.5 to 1.5 in-lbs (0.056 to 0.169 Nm), but it's best to consult the manufacturer's application notes or contact their technical support for specific guidance.
Yes, the 823-22-008-10-004101 connectors are designed to withstand vibration and shock. They meet the requirements of MIL-STD-202, Method 204, Condition D, which includes vibration testing up to 20 G's and shock testing up to 100 G's.
The connectors are rated for operation up to 150°C (302°F), but the temperature rating may vary depending on the specific application and environment. It's essential to consult the manufacturer's documentation and perform thermal analysis to ensure the connectors meet the requirements of your specific application.
Yes, the 823-22-008-10-004101 connectors are designed for automated assembly and inspection. They feature a compact, rectangular shape and a flat, parallel mating surface, making them suitable for pick-and-place machines and automated inspection systems.
The lead time and minimum order quantity for the 823-22-008-10-004101 connectors may vary depending on the supplier, region, and production schedule. Typically, the lead time ranges from 4 to 12 weeks, and the minimum order quantity is around 1,000 to 5,000 pieces. It's best to contact the manufacturer or authorized distributor for specific information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
823-22-008-10-004101 Overview

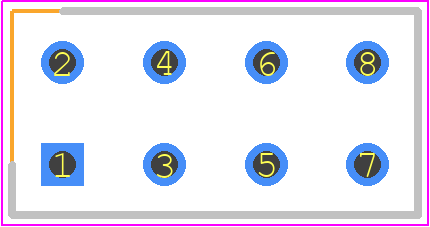

Use the download button to access the 823-22-008-10-004101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 823-2,
or try a keyword search, such as Headers and Edge Type Connectors
